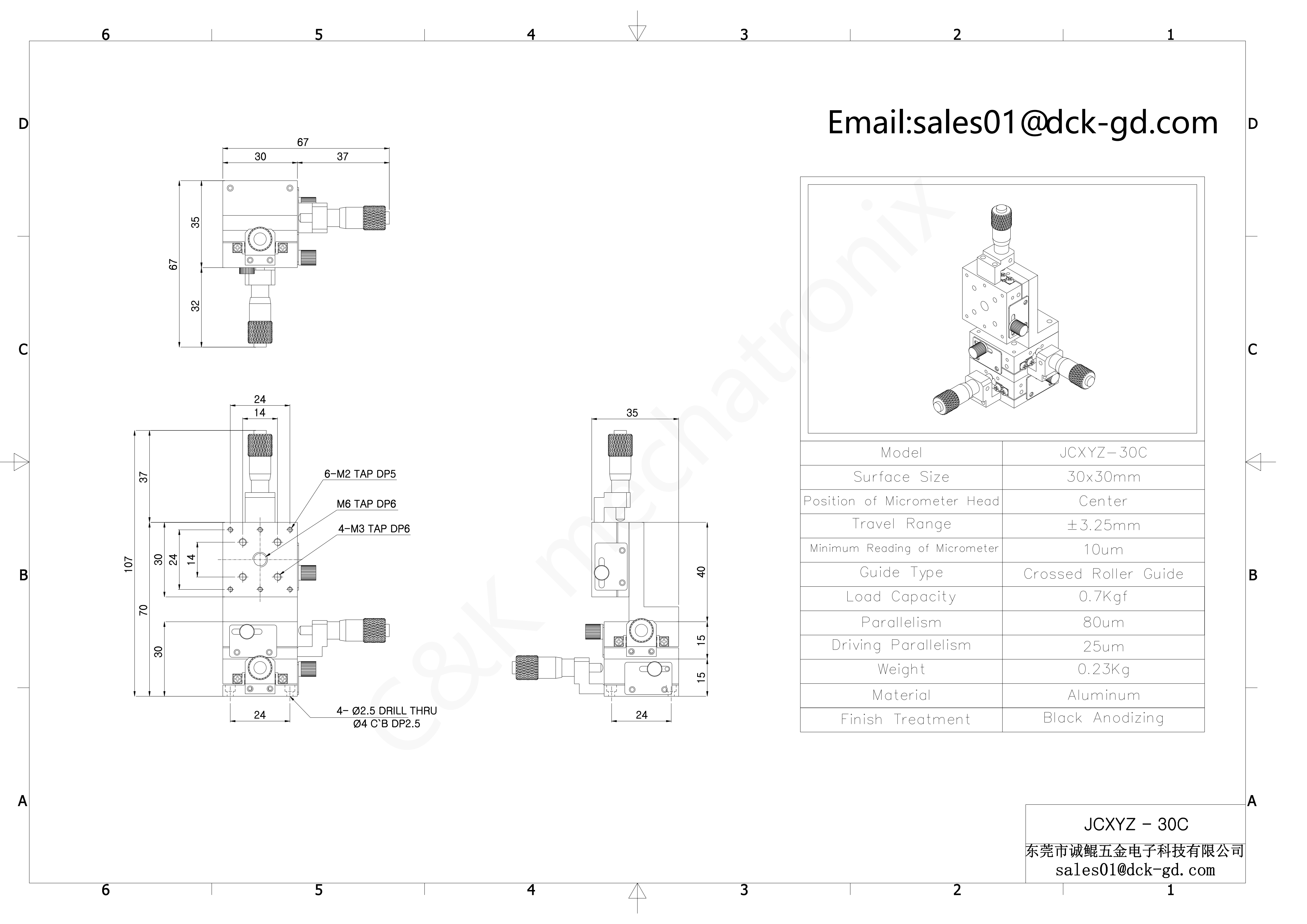

C&K JCXYZ-30 X Y Z Axis Manual Stage Optical parts in Stock
Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCXYZ-30 |
| Surface Size | 30*30mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 0.7kgf |
| Parallelism | 80μm |
| Driving Parallelism | 25μm |
| Weight | 0.23kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCXYZ-30 series of manual stage units are high-precision positioning devices meticulously designed for optical instruments. Their worktable dimensions are 30×30 millimeters, and the entire device weighs only 0.23 kilograms. With its compact size and lightweight design, it’s easy to integrate into various systems and suitable for a wide range of precision applications. The device can handle a maximum load of 0.7 kilograms, combining efficiency with practical load-bearing capacity. It features cross-roller guide rails for smooth, seamless operation without any lag or sticking. Equipped with a precision scale accurate to 10 microns, it enables precise positioning adjustments, meeting the stringent requirements of high-precision optical tasks. The product offers OEM/ODM customization options, and custom laser markings can be applied as needed to fulfill personalized requirements. It also meets ISO standards and complies with French and German EPR environmental packaging regulations, ensuring both environmental friendliness and market competitiveness. This product is manufactured by a professional Chinese manufacturer, and its high-quality products are exported to markets like South Korea and Japan. Its reliable performance and superior quality have earned it widespread recognition in the industry.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
