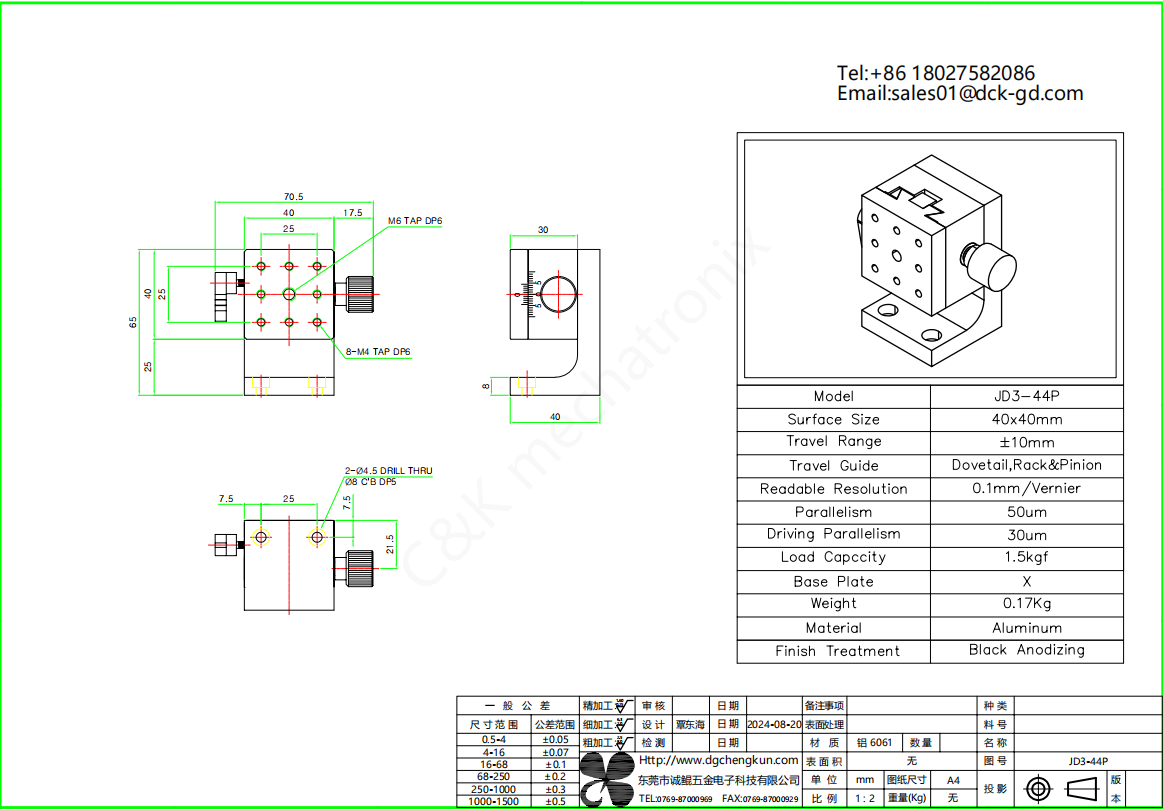

JD3-44P Dovetail Rack & Pinion X-axis Stage

The C&K JD3-44P is a lightweight single X-axis manual dovetail positioning stage with rack and pinion driving mechanism, designed for short-stroke fine horizontal adjustment in optical alignment, laboratory testing and miniature inspection fixtures. The table platform measures 40×40 mm, reserving multiple threaded mounting holes to securely hold optical lenses, micro sensors and small measuring jigs. It delivers ±10 mm of effective horizontal travel, perfectly matching the demand for subtle horizontal position calibration in compact experimental systems.

Equipped with integrated vernier scale, this manual stage provides 0.1mm readable resolution for precise position reading in repeated adjustment cycles. Its static parallelism reaches 50μm and driving parallelism maintains 30μm across the whole stroke range, ensuring stable flatness and guiding accuracy as the platform slides. The rated load capacity is 1.5kgf, suited for supporting lightweight optical assemblies without sacrificing adjustment precision.

Fabricated from aluminum alloy and processed with black anodizing surface treatment, JD3-44P gains improved wear resistance and anti-oxidation capability, protecting the stage surface from scratches under long-term use in lab and light industrial environments. Weighing merely 0.17kg, this ultra compact single axis stage comes with X base plate, enabling simple and direct installation on optical breadboards, test frames and custom jigs.

The rack-and-pinion transmission brings fast manual tuning, which outperforms screw-type stages for rapid position resetting. It supports stacking combination with other single-axis stages to assemble XY or XYZ multi-axis positioning platforms for complex multi-directional adjustment tasks. This manual stage is widely adopted for micro component inspection, optical element positioning and laboratory fixture fine-tuning. Custom services including mounting hole reworking are available to meet varied customer installation and integration requirements.
