C&K JCXYZ-80-25 X Y Z Axis Manual Stage Optical parts in Stock

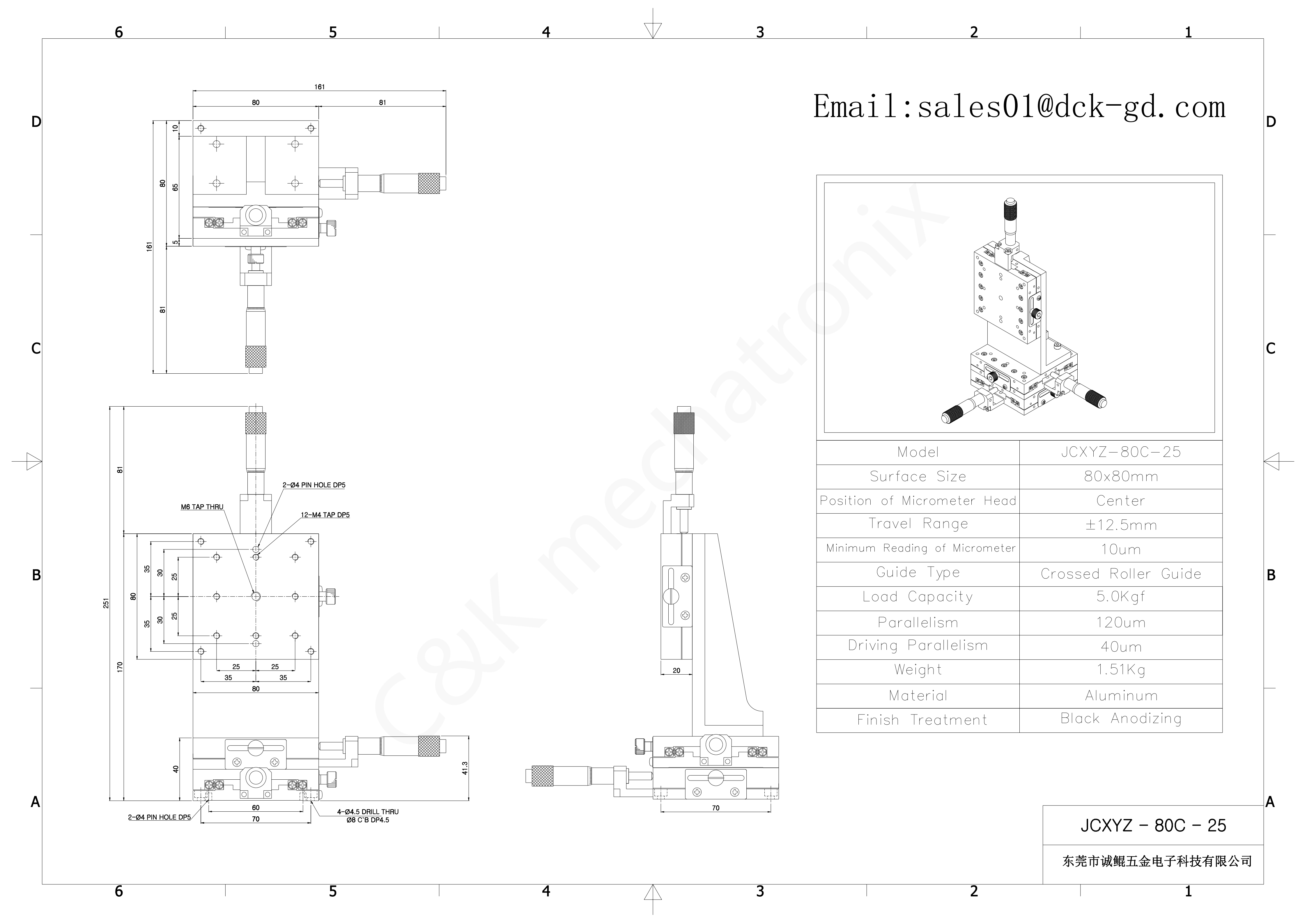

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCXYZ-80-25 |
| Surface Size | 80*80mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 5.0kgf |
| Parallelism | 120μm |
| Driving Parallelism | 40μm |
| Weight | 1.51kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCXYZ-80-25 series of manual precision slides are specialized high-precision positioning devices for optical instruments. They feature an XZ-axis integrated design, resulting in a compact overall structure. The tabletop dimensions are 80mm × 80mm, and the device weighs only 1.51kg, making it ideal for various high-precision positioning applications due to its lightweight design. The XY axes are driven by feed screws for precise horizontal adjustment, while the Z axis uses gear and rack transmission for fast vertical movement. This combination ensures both accuracy and efficiency in three-axis adjustments. The device can handle a load of up to 5kgf. It’s equipped with high-precision cross-roller guides for smooth operation. Along with a 10-micron scale, it enables micrometer-level precision adjustments, perfectly meeting the requirements of optical precision positioning. This product is available for OEM/ODM customization and laser engraving. It has passed ISO certification and complies with EU and German EPR environmental standards, facilitating easy cross-border distribution. Produced by domestic precision machinery manufacturers, it is primarily sold in high-end markets in Korea and Japan. Its reliable quality has earned it the trust of many customers.
