Manual Crossed-Roller Stage (120mm Large Platform Model)

Designed for applications requiring expansive mounting real estate, the JCHZ-120 manual translation stage utilizes precision crossed-roller bearing technology coupled with a micrometer head adjustment mechanism, topped with a spacious 120×120 mm work surface. Machined from a single aluminum block and tipping the scale at 1.2 kg, this unit delivers enhanced torsional rigidity and vibration damping compared to smaller format stages. It offers ±5 mm of controlled linear travel and can be deployed in either horizontal or vertical orientation, enabling straightforward integration into XYZ gantry systems, optical breadboards and custom inspection rigs.

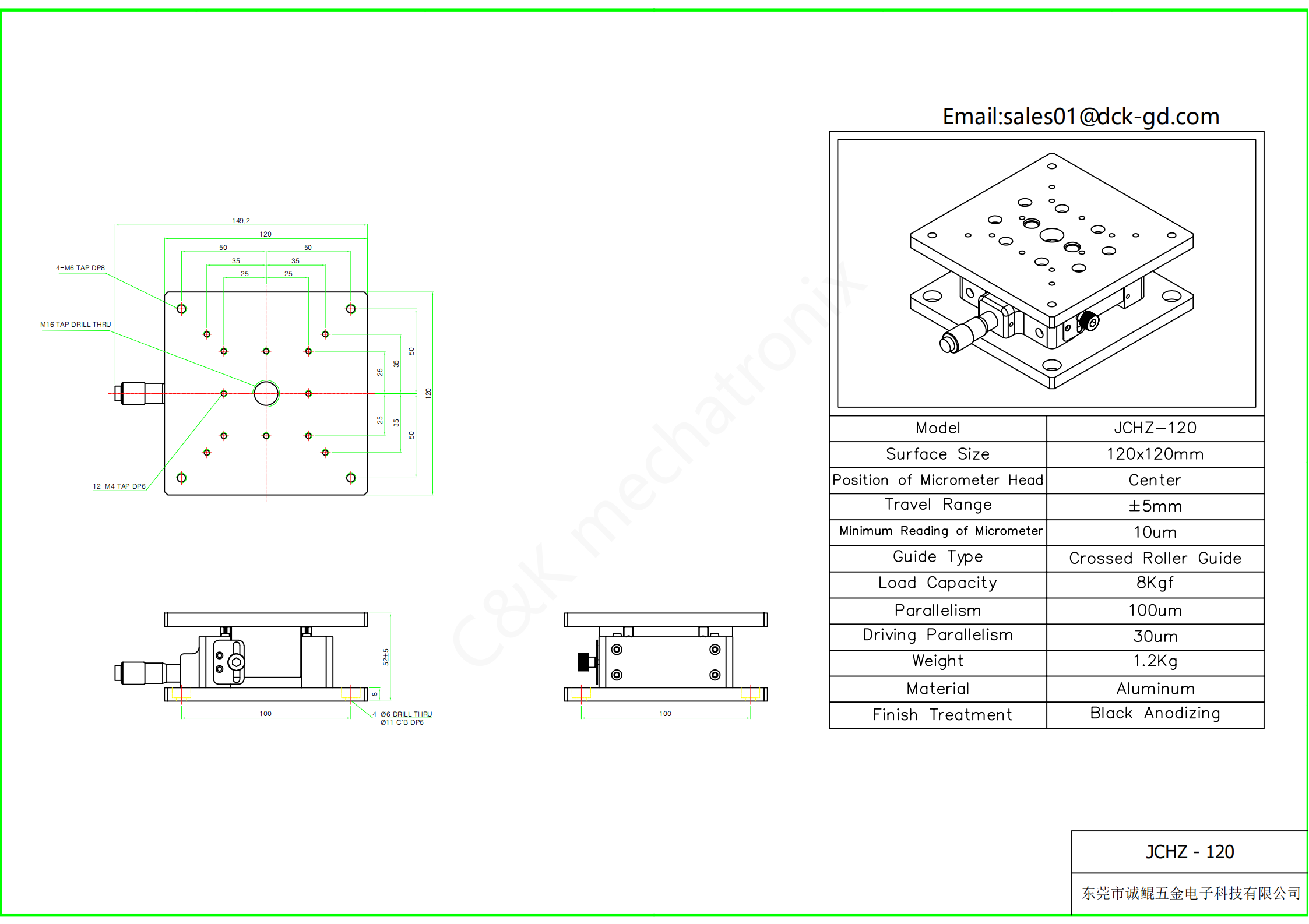

Calibrated to a 10 μm vernier readability, with a 100 μm table parallelism specification and a 30 μm drive parallelism tolerance, this stage preserves motion accuracy and flatness across its entire operational range. It is commonly integrated into automated vision systems, laser machining workstations, photonic alignment setups, screen printing equipment and biomedical testing apparatus. The 120 mm square platform provides ample room for mounting multiple fixtures, large-format lenses, camera modules or multi-sample trays, giving design engineers the flexibility they need when building complex precision assemblies with heavier payloads up to 8 kgf.

The JCHZ-120 delivers exceptional long-term value for industrial and R&D environments alike. Its black anodized surface treatment guards against corrosion and minimizes optical glare, while the robust crossed-roller guide structure ensures years of maintenance-free operation with minimal wear. For equipment manufacturers and laboratory teams prioritizing a large working area, solid load-bearing performance and dependable manual positioning accuracy, this model stands out as a highly cost-effective engineering choice.
