C&K JCXY-60S X Y Axis Manual Stage Integrated model

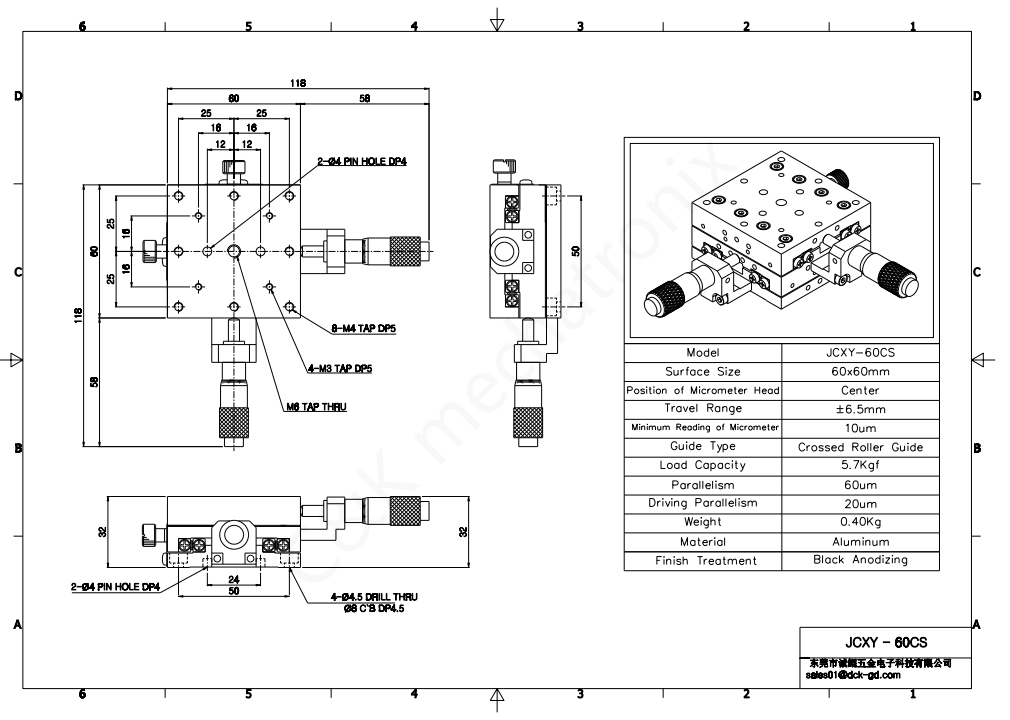

Download as 2D
Download as 3DProduct Parameter List
|
Model |
JCXY-60S |
|
Sueface Size |
60*60 mm |
|
Travel Range |
±6.5mm |
|
Parallelism |
60μm |
|
Draving parallelism |
20μm |
|
Orthogonality |
10μm |
|
Guide type |
Crossed roller guide |
|
Load Capacity |
5.7 kg |
|
Weight |
0.42 kg |
|
Material |
Aluminum |
|
Finish Treatment |
Black Anodizing |
Describe
This integrated manual sliding table JCXY-60S features a standard 60×60 mm tabletop, offering a compact and space-saving design with an effective travel range of up to 13 mm. Compared to assembled sliding tables with the same stroke length, this model has a lower profile, making it ideal for installation in tight spaces and providing superior adaptability to various equipment configurations.
Compared to the 40 mm tabletop version, this product offers more than double the load capacity. While maintaining its compact size and low height, it meets the demands of applications requiring higher load-bearing capabilities, significantly expanding its application scope. The table ensures smooth adjustment and precise positioning, enabling high-precision displacement and alignment operations, making it widely compatible with dispensing, screen printing, pad printing, and other processing equipment.
As a reliable original manufacturer, we adhere to strict Japanese and Korean export quality standards, ensuring solid craftsmanship, stable operation, and long service life. Through our self-manufacturing and direct-sales model, we eliminate intermediaries and offer competitive pricing. This makes our product an excellent precision adjustment component that combines high load capacity and accuracy, especially suitable for confined workspaces.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
