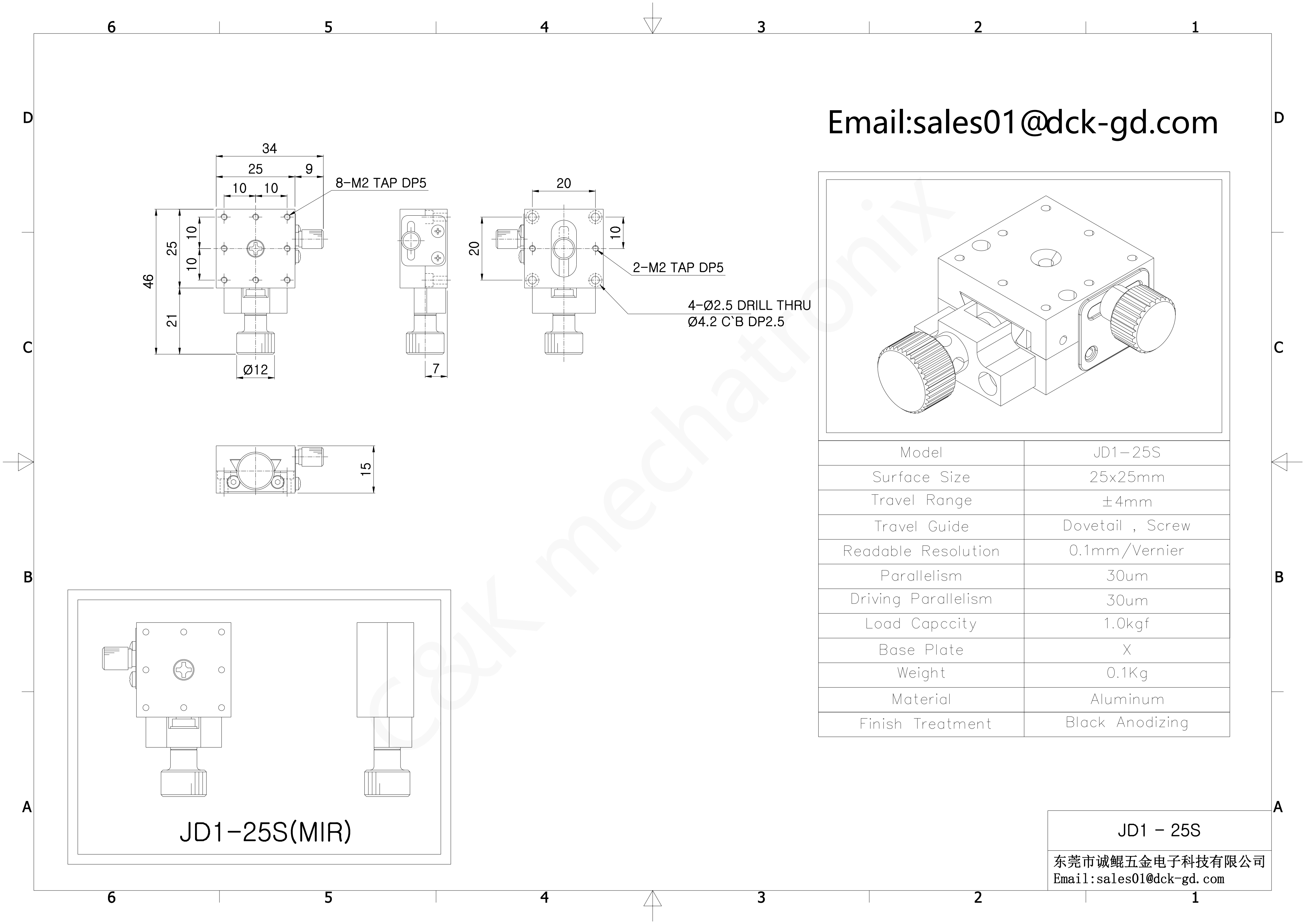

C&K JD1-25S Dovetail stage (Screw type)
Download as 2D
Download as 3DProduct Parameter List
|
Model |
JD1-25S |
|
Surface Size |
25x25mm |
|
Travel Range |
±4mm |
|
Travel Guide |
Dovetail,Screw |
|
Readable Resolution |
0.1mm/Vernier |
|
Parallelism |
30um |
|
Driving Parallelism |
30um |
|
Load Capacity |
1.0kgf |
|
Weight |
0.1kg |
|
Material |
Aluminum |
|
Finish Treatment |
Black Anodizing |
Describe
Model JD1-25S is a compact single-axis manual dovetail linear stage with 25×25mm tabletop, made of black anodized aluminum and net weight 0.1kg, driven by screw handwheel for manual precision positioning. It widely used in optical instruments, testing equipment, and experimental fixtures for aligning small components.
Key Performance Features
It has ±4mm travel range with 0.1mm vernier resolution; parallelism and driving parallelism are both within 30μm, rated load is 1.0kgf. The wear-resistant dovetail guide rails, combined with an anti-corrosive anodized surface, enable long-term stable operation in normal indoor working environments.
Cost Effectiveness
This complete set of equipment is manufactured using aluminum alloy, which not only offers excellent material quality but also achieves a reasonable production cost.Lower purchase cost than cross roller guide linear stages; fully manual design cuts power consumption and maintenance expense, compact size reduces equipment layout cost for users.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
