C&K JXY-60 X YAxis Manual Stage Optical parts in Stock

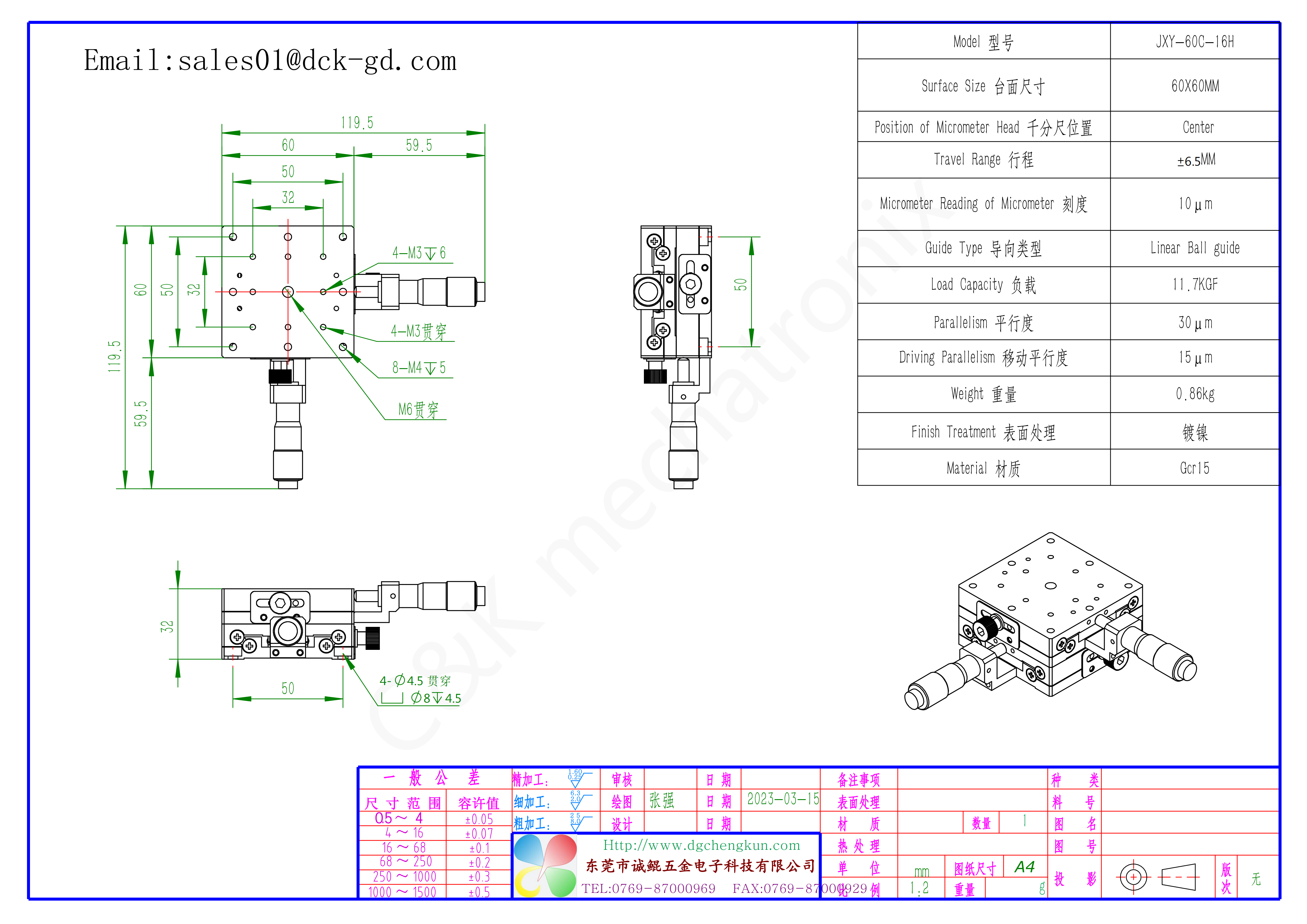

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JXY-60 |
| Surface Size | 60*60mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Linear Ball guided |
| Load capacity | 11.7kgf |
| Parallelism | 30μm |
| Driving Parallelism | 15μm |
| Weight | 0.86kg |
| Material | Steel |
| Finish Treatment | Electroless Nickel Plating |
Describe
The C&K JXY-60 series of manual stages are high-precision positioning devices designed specifically for optical instruments. The frame is made of high-quality steel, with a surface coating of electroless nickel. This combination ensures structural rigidity, dimensional stability, and resistance to wear and corrosion, allowing for long-term use with high precision. The stage has a surface size of 60mm × 60mm, and the overall weight is 0.86kg. Its lightweight design makes it ideal for use with various high-precision optical equipment. Equipped with cross-roller guides, it provides smooth operation without any shaking. The positioning accuracy is 10 microns, and it can handle a maximum load of 11.7 kgf. These features fully meet the requirements of precise optical positioning. The product comes standard with M6 threaded holes and supports customizations, including OEM/ODM services and laser marking. It has passed ISO certification and complies with European and German EPR environmental packaging standards. It also meets all export requirements. Manufactured by a domestic precision machinery manufacturer, this product is primarily sold in the high-end instrument markets of Korea and Japan. Its reliable quality has earned it the trust of many customers.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
