C&K JCXYZ-25 X Y ZAxis Manual Stage Optical parts in Stock

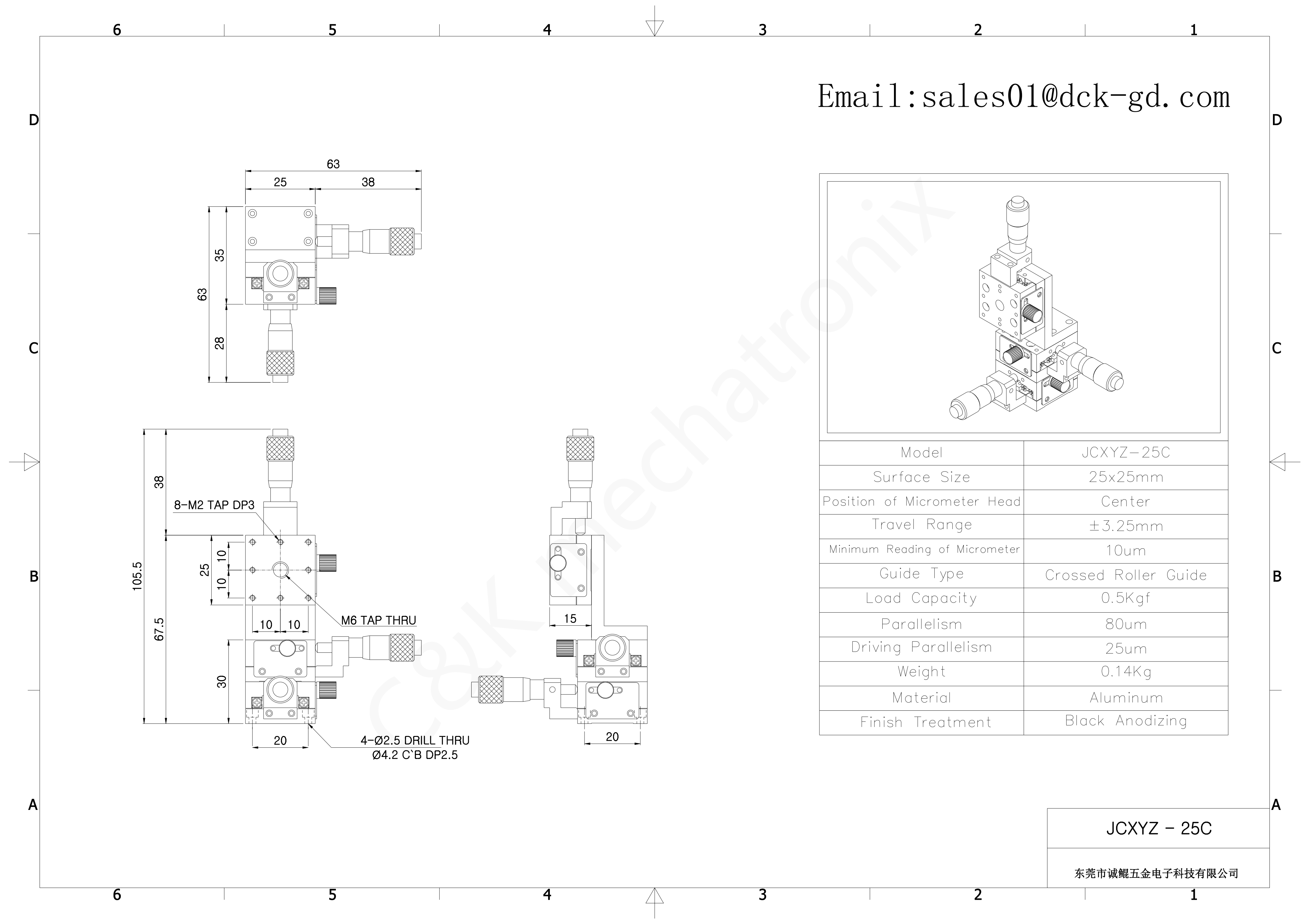

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCXYZ-25 |
| Surface Size | 25*25mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Cross roller guided |
| Load capacity | 0.5kgf |
| Parallelism | 80μm |
| Driving Parallelism | 25μm |
| Weight | 0.14kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCXYZ-25 series manual stage is a high-precision three-axis positioning stage professionally designed for optical instruments, precision testing, and laboratory precision adjustment. It adopts a compact 25*25mm table structure, with a net weight of only 0.14kg, which is light and easy to integrate into various small precision equipment. The stage is equipped with stable crossed-roller guide rails, featuring smooth movement, low friction, and high stability, with a load capacity of 0.5kgf to meet daily light-load positioning needs. The micrometer head has a minimum reading of 10μm, achieving accurate and reliable micro-displacement adjustment, fully satisfying the high-precision positioning requirements of optical systems.
The product supports flexible OEM and ODM customization services, and can provide laser logo engraving to meet customers’ brand and personalized needs. It has passed international ISO certification, and its packaging fully complies with EPR environmental protection packaging standards in France and Germany, ensuring environmental protection, safety, and smooth access to the European market. As a professional manufacturer from China, we have rich production experience and strict quality control. Our products are mainly exported to South Korea, Japan and other countries, and are widely recognized and trusted by customers in the global precision instrument industry for their stable performance and reliable quality.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
