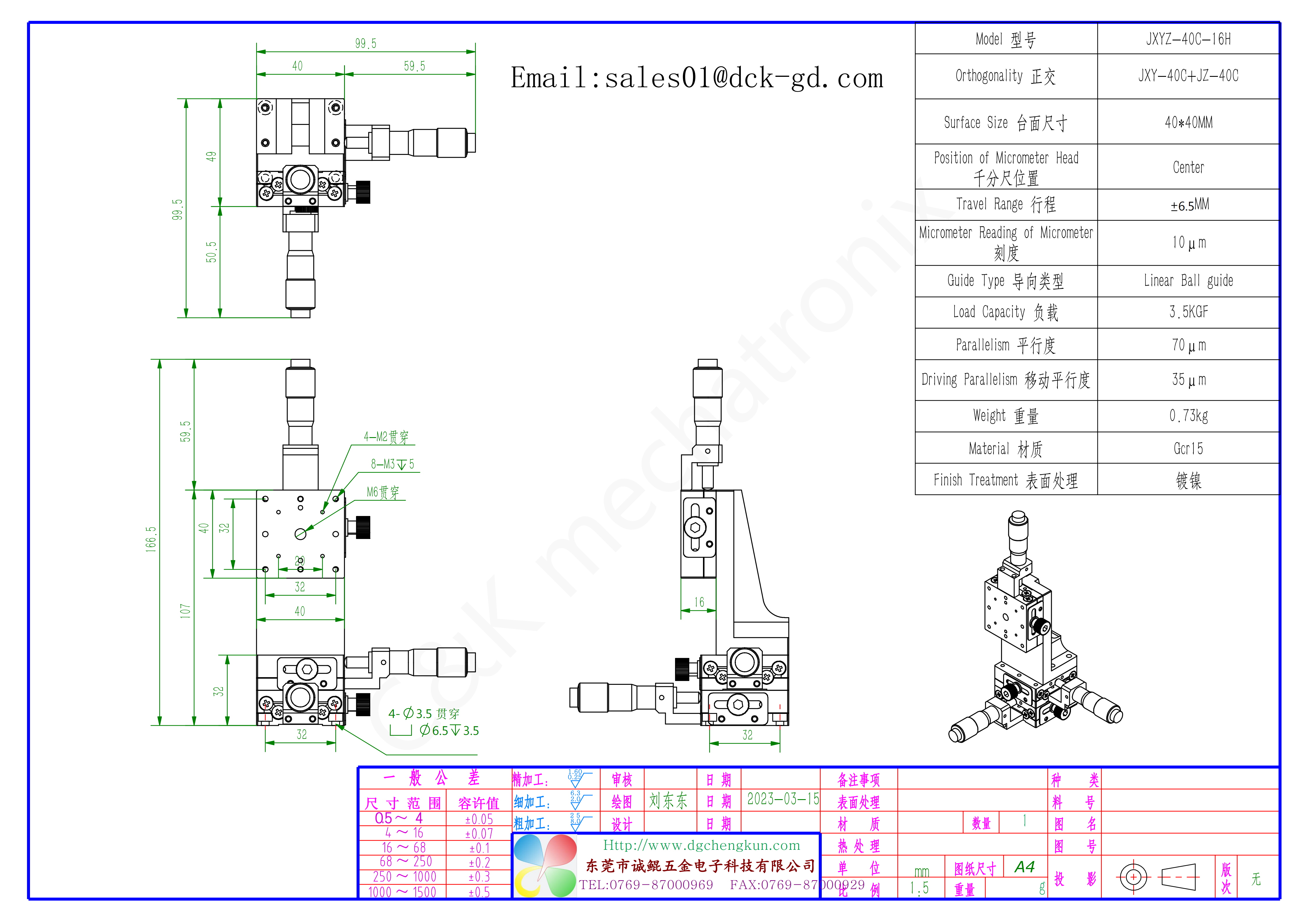

C&K JXYZ-40 X Y Z Axis Manual Stage Optical parts in Stock
Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JXYZ-40 |
| Surface Size | 40*40mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Linear Ball Guide |
| Load capacity | 3.5kgf |
| Parallelism | 70μm |
| Driving Parallelism | 35μm |
| Weight | 0.73kg |
| Material | Steel |
| Finish Treatment | Electroless Nickel Plating |
Describe
The C&K JXYZ-40 series of manual stages are high-precision positioning devices designed specifically for optical instrument systems. The frame is made of high-quality steel, with a surface treated using electroless nickel plating. This combination ensures excellent structural rigidity, dimensional stability, and resistance to wear and corrosion, enabling long-term use with high precision. The worktable size is 40mm × 40mm, and the overall weight of the device is only 0.73kg. It features an integrated XZ-axis slide mechanism, resulting in a highly compact design. The XY axes utilize feed screws for precise horizontal adjustment, while the Z-axis uses rack and pinion transmission for fast vertical movement. With cross-roller guides, the device operates smoothly without any shaking or drift. Its positioning accuracy reaches 10 microns, and it can handle a maximum load of 3.5 kgf. These features fully meet the demanding requirements of high-precision positioning in the optical industry. The product can be customized to meet specific needs, and it is also available in OEM/ODM versions. It can be further processed with laser marking. The product has passed ISO certification and complies with environmental packaging standards in France and Germany. It meets all the requirements for exporting to overseas markets. Manufactured by a professional Chinese manufacturer of precision machinery, this product is primarily sold in the high-end precision instrument markets of South Korea and Japan. Its consistent quality has earned it long-term recognition and trust from customers worldwide.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
