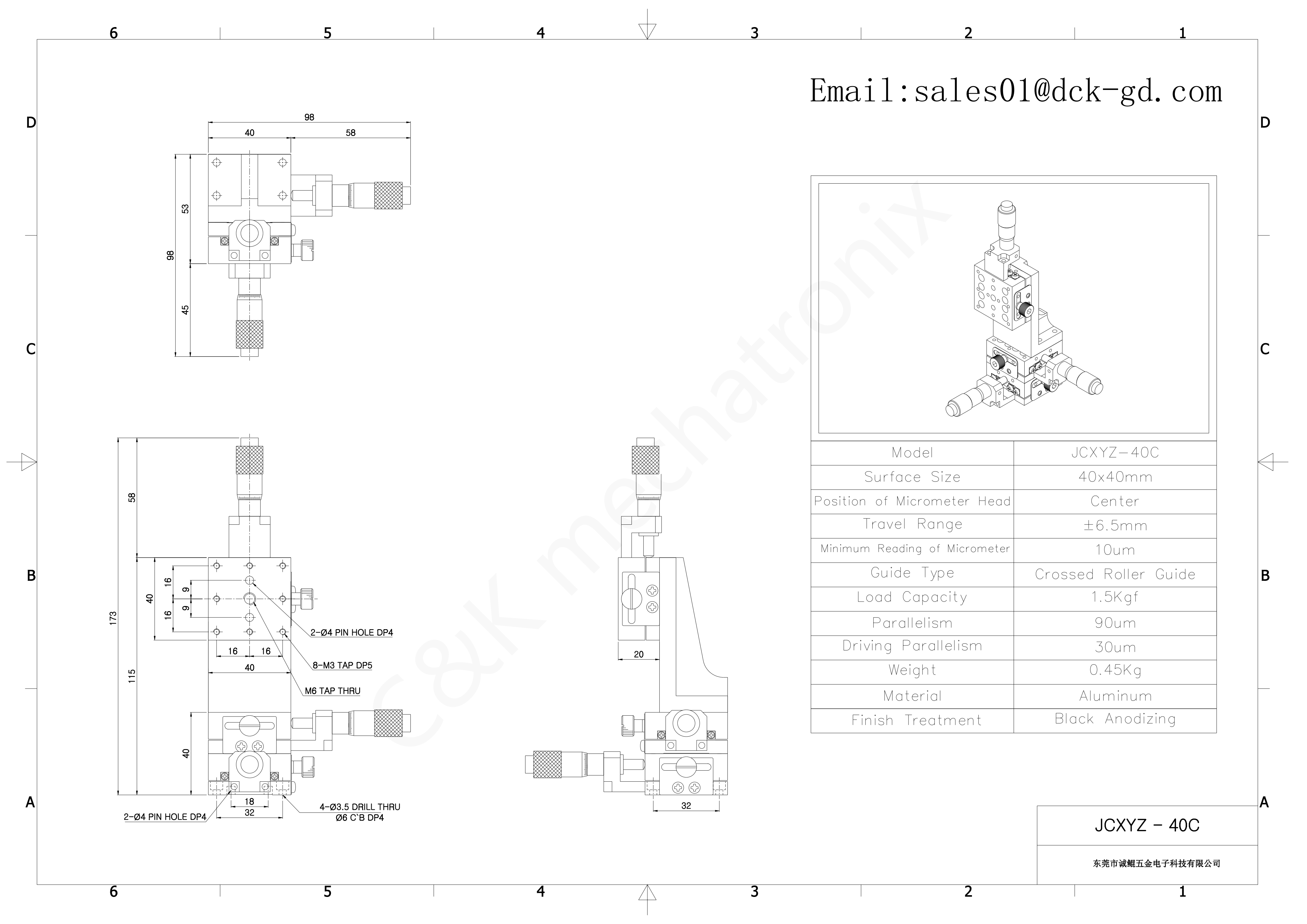

C&KL JCXYZ-40L/R/C Multi-axis Manual Slide for Fine-tuning Optical Precision Positioning
Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCXYZ-40 |
| Surface Size | 40*40mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Corssed Roller Guide |
| Load capacity | 1.5kgf |
| Parallelism | 90μm |
| Driving Parallelism | 30μm |
| Weight | 0.48kg/0.48kg/0.45kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCXYZ-40 series of manual precision slides are high-precision positioning devices designed specifically for optical instruments. The slide has a surface size of 40×40 millimeters, with a net weight of 0.48 kilograms per unit. Its compact design facilitates easy integration into systems and makes it suitable for various high-precision applications. The slide can handle a maximum load of 1.5 kgf. Its lightweight design combines with excellent load-bearing capacity. Equipped with precision crossed-roller guides, it operates smoothly without any jerks or delays. With a minimum resolution scale of 10 microns, it enables precise micro-adjustments at the micron level, meeting the demanding requirements of optical applications for high-precision positioning. The product is available for OEM/ODM customization and can also be laser-etched as needed. It has passed ISO certification and complies with environmental packaging standards in France and Germany. Thus, it meets environmental regulations and offers advantages for cross-border trade. Produced by a professional Chinese manufacturer of precision equipment, this product is primarily exported to high-end markets in South Korea and Japan. Its stable performance and reliable quality have earned it the long-term trust of customers worldwide.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
