C&K JCX-30 X Axis Manual Stage Optical parts in Stock

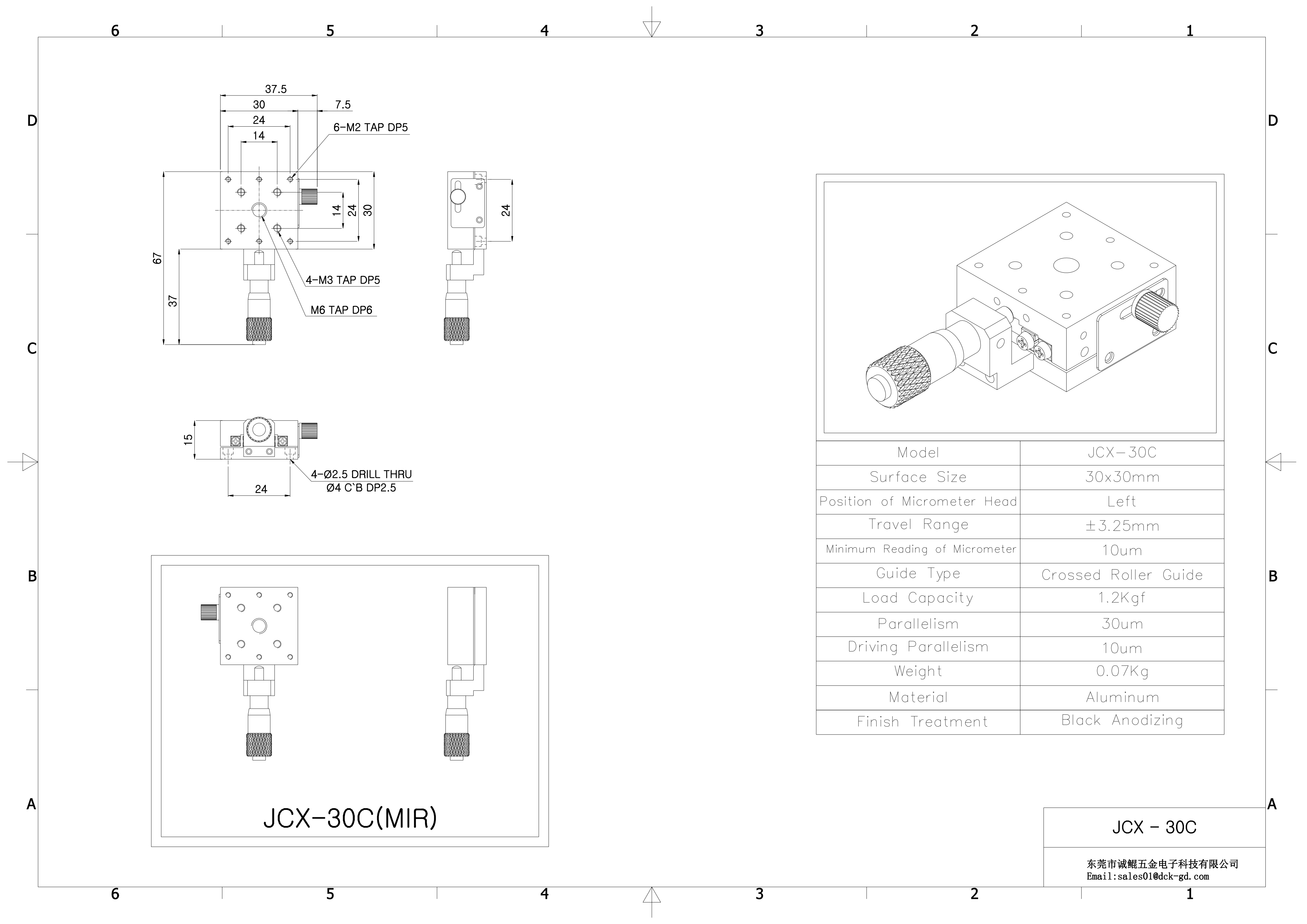

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCX-30 |
| Surface Size | 30*30mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Travel Range | ±3.25mm |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed roller guided |
| Load capacity | 1.2kgf |
| Parallelism | 30μm |
| Driving Parallelism | 10μm |
| Weight | 0.07kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
JCX-30 manual stage is equipped with an small 30×30mm surface size and features a travel of ±3.25mm. Designed specifically for extremely confined spaces, it is an ideal accessory for compact equipment and miniature experimental setups. Optimized for light loads, it is well-suited for R&D, commissioning and positioning tasks involving small and lightweight workpieces.
Driven by a micrometer head, it ensures smooth operation and highly accurate readings, delivering precise displacement control to meet strict requirements for fine adjustment and positioning. Manufactured in compliance with export standards for Japan and South Korea, the product features reliable performance with strict quality control. We provide a one-year warranty for failures not caused by human damage. The extended warranty brings you complete peace of mind in after-sales service.
We maintain long-term in-depth cooperation with Mentor from South Korea. We introduce advanced Korean technologies and carry out localized improvements to cater to domestic market demands. As an in-house manufacturer integrating R&D, production and sales, we eliminate intermediate distributors. We offer products of top-tier quality at factory-direct prices, bringing you outstanding cost performance.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
