C&K JCZ-80-25 Z Axis Manual Stage Optical parts in Stock

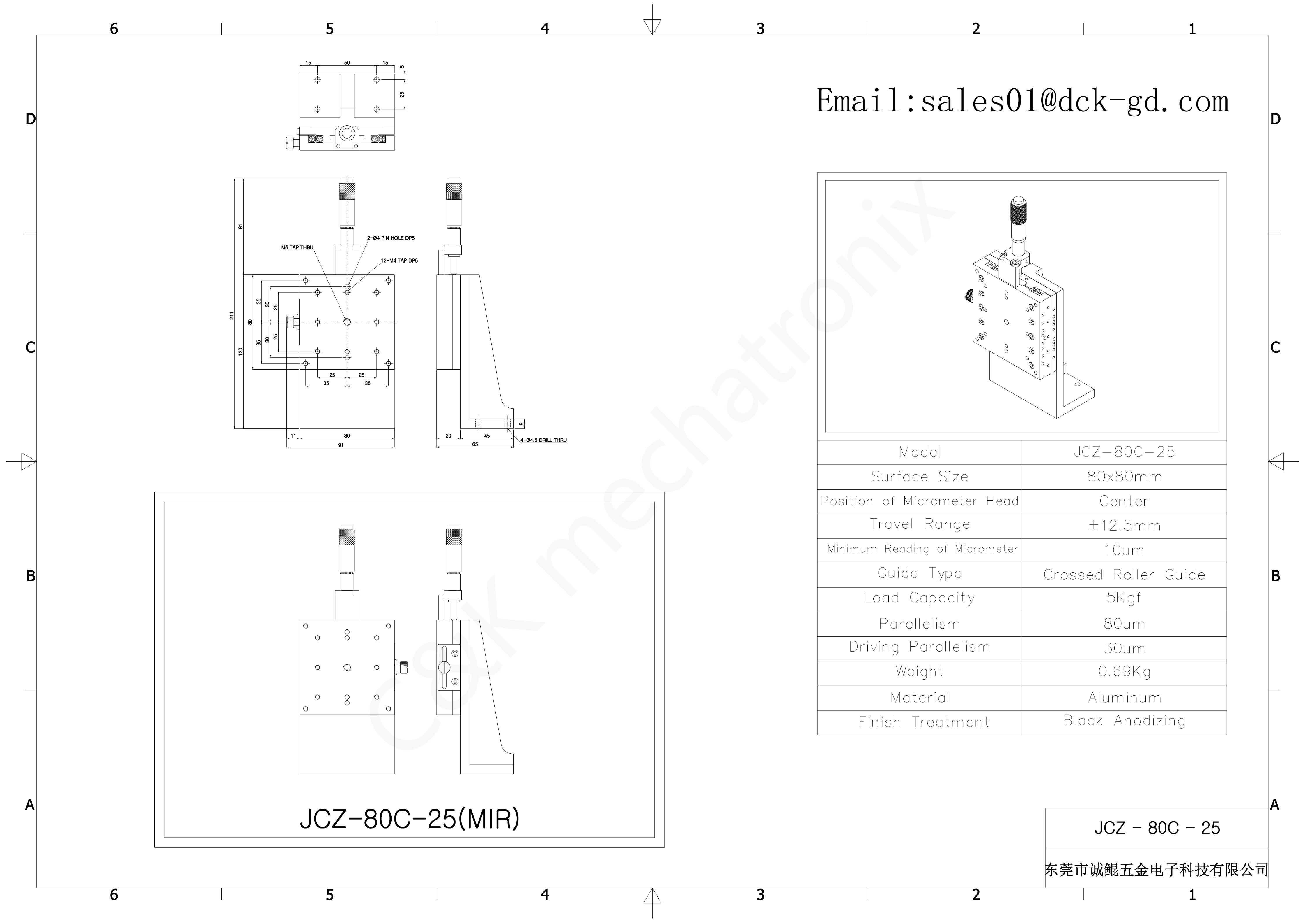

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCZ-80-25 |
| Surface Size | 80*80mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 5kgf |
| Parallelism | 80μm |
| Driving Parallelism | 30μm |
| Weight | 0.69kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCZ-80-25 series of manual stages are high-precision positioning devices designed specifically for optical instruments. The stage size is 80mm × 80mm, and its weight is only 0.69kg. With its lightweight and compact design, it is ideal for use in various high-precision optical applications. The clamping mechanism has been optimized, providing better holding force compared to standard models. The positioning and locking functions are reliable, minimizing errors caused by displacement. The rated load capacity is 5kgf. Equipped with high-precision cross-roller guides, the stage operates smoothly. Along with a 10-micron scale, it enables precise adjustments at the micrometer level, meeting the requirements of high-precision optical positioning. This product offers OEM/ODM customization options and laser marking services. It meets ISO standards and complies with European and German EPR regulations regarding environmentally friendly packaging. It is suitable for export to overseas markets. Produced by domestic precision machinery manufacturers, it is primarily exported to high-end markets in Korea and Japan. Its stable performance has earned it great trust among customers.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
