C&K JXY-40 X YAxis Manual Stage Optical parts in Stock

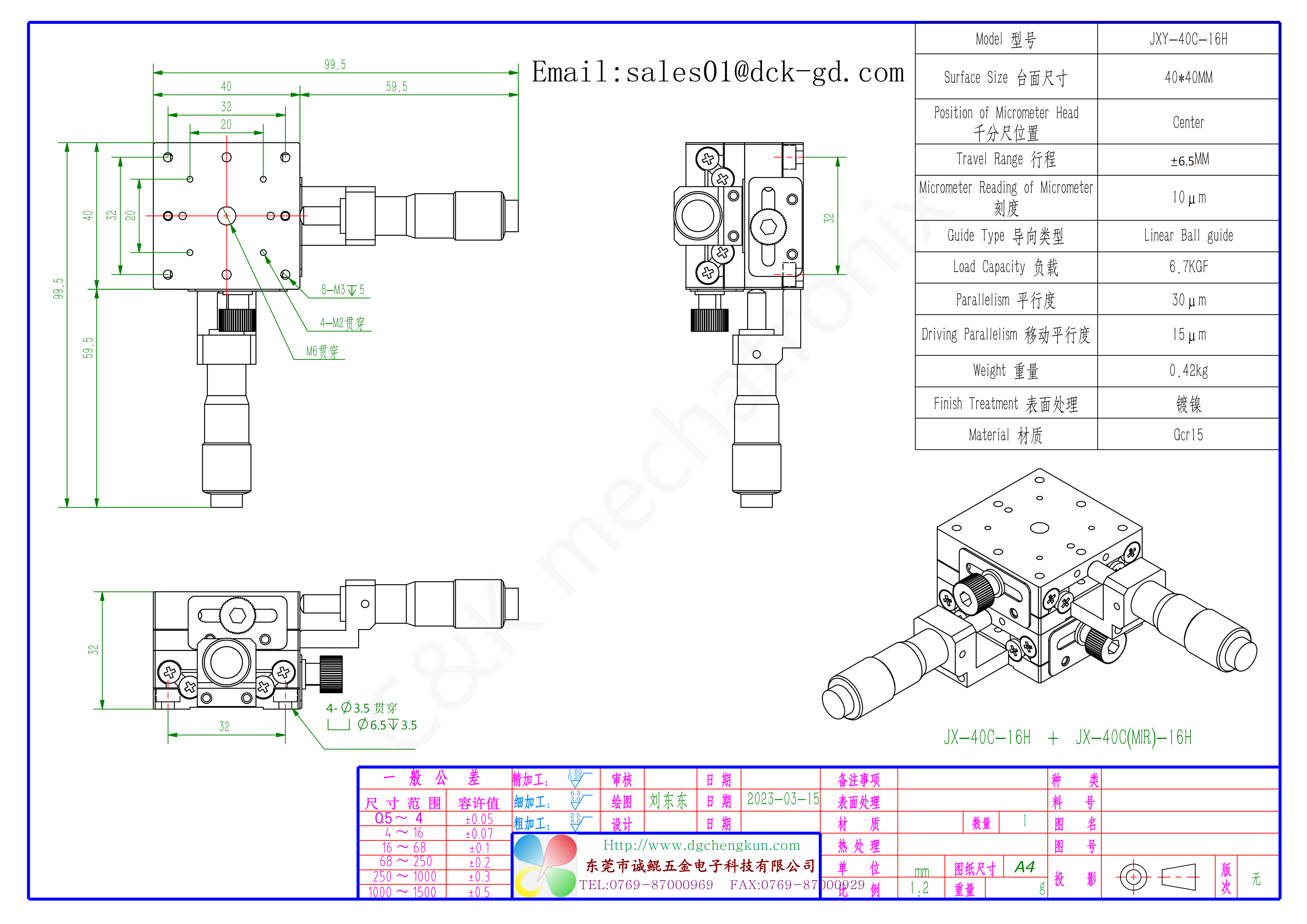

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JXY-40 |
| Surface Size | 40*40mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Linear Ball guided |
| Load capacity | 6.7kgf |
| Parallelism | 30μm |
| Driving Parallelism | 15μm |
| Weight | 0.42kg |
| Material | Steel |
| Finish Treatment | Electroless Nickel Plating |
Describe
The C&K JXY-40 series of manual stages are high-precision positioning devices specifically designed for optical instruments. The main body is made of high-quality steel, with a surface treated with electroless nickel plating. This combination ensures excellent structural rigidity, dimensional stability, and wear-resistant corrosion protection, allowing the device to maintain high-precision performance over long periods. The tabletop size is 40mm × 40mm, and the overall weight is only 0.42kg, making it ideal for use with various high-precision micro-optical devices. The unit comes standard with M6 threaded holes, allowing for precise long-distance adjustment using a long-stroke rotary knob. Equipped with crossed roller guides, it provides smooth operation without any shaking. The positioning accuracy reaches 10 microns, and it can handle a maximum load of 6.7 kgf. This makes it perfectly suited for high-precision optical positioning applications. The product is available for OEM/ODM customization and laser marking. It has passed ISO certification and complies with European and German EPR environmental packaging standards. It also meets all export requirements. Produced by domestic precision machinery manufacturers, it is primarily sold in the high-end precision instrument markets of Korea and Japan. Its consistent quality has earned it long-term trust from customers.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
