C&K JCXY-120-25 X Y Axis Manual Stage Optical parts in Stock

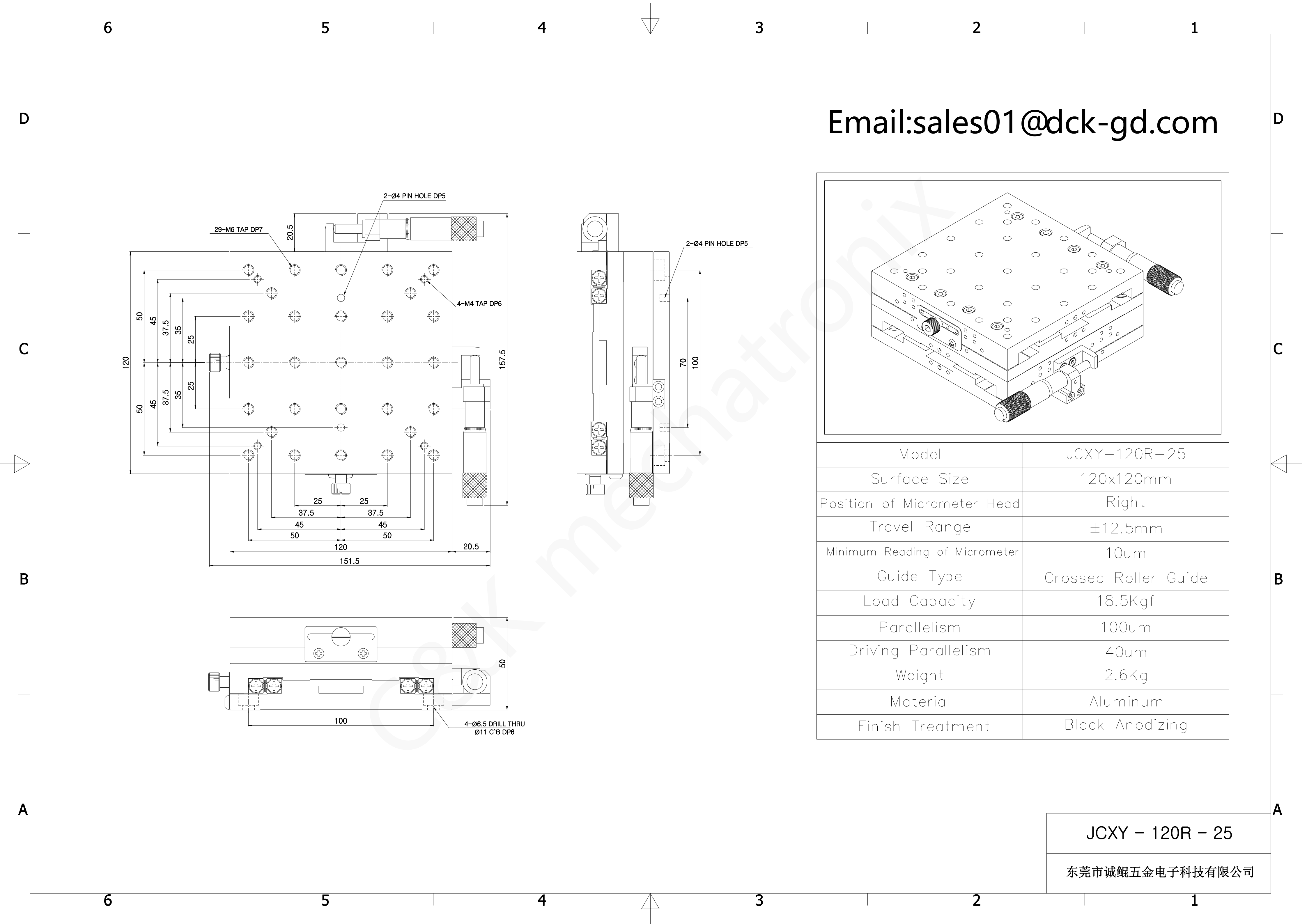

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCXY-120-25 |
| Surface Size | 120*120mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 18.5kgf |
| Parallelism | 100μm |
| Driving Parallelism | 40μm |
| Weight | 2.60kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCXY-120-25 series of manual displacement stages are high-precision positioning devices designed specifically for optical instruments. They feature a compact design, lightweight structure, precise positioning, and stable operation, making them ideal for various high-precision optical applications. The tabletop dimensions are 120×120 millimeters, and the device weighs 2.6 kilograms, making it easy to install and integrate into systems. It can handle a load of up to 18.5 kilograms, while maintaining accurate performance even under heavy loads. The device uses highly rigid materials combined with cross-roller guides to minimize friction, ensuring smooth operation without any pauses. It also boasts excellent resistance to deformation and durability. Equipped with a dial indicator with a minimum resolution of 10 microns, it allows for precise adjustments at the micron level, meeting the stringent accuracy requirements of optical testing and microscopic observation applications. This product is available for OEM/ODM customization and laser engraving. It has passed ISO certification and complies with EU environmental packaging standards. It is highly compliant, easy to transport across borders, and manufactured under strict quality control by professional manufacturers, ensuring reliable and stable performance.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
