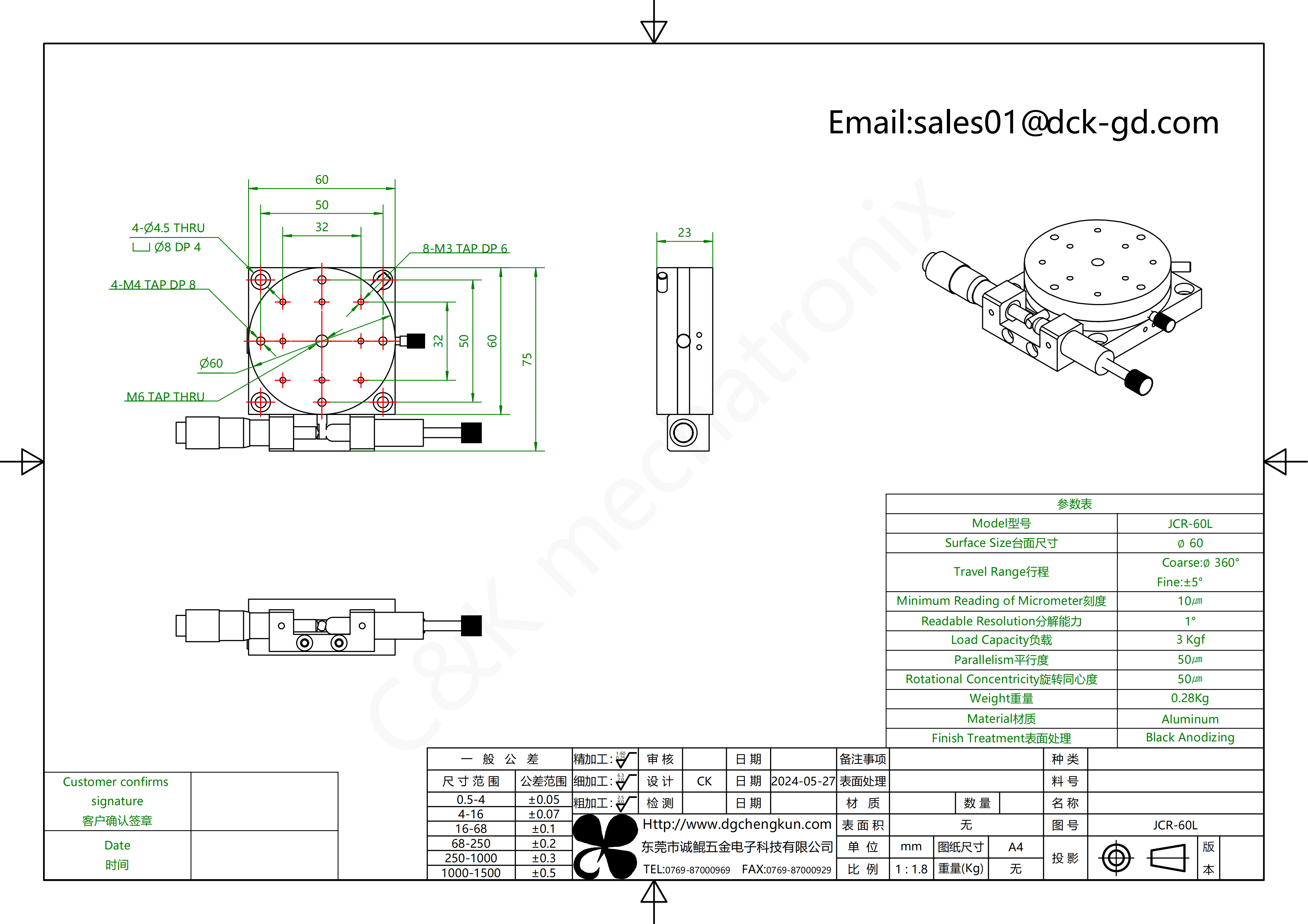

C&K JCR-60 rotary Axis Manual Stage high load capacity
Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCR-60 |
| Surface Size | ∅60 |
| Position of Micrometer Head | Left/Right |
| Minimum Reading of Micrometer | 10μm |
| Travel Range | Coarse：∅360° Fine：±5° |
| Readable Resolution | 1° |
| Guide Type | 3.0kgf |
| Parallelism | 50μm |
| Rotational Concentricity | 50μm |
| Weight | 0.28kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The JCR-60 mobile slide table is designed for heavy-duty applications, featuring “high load capacity + ultra-high precision”. Compared to traditional rotary slide tables, its load-bearing capacity is significantly improved, ensuring stable and reliable positioning under heavy loads. The frame is made of aluminum alloy with black anodizing treatment, resulting in a durable, corrosion-resistant surface that’s also easy to maintain. It supports 360° rapid coarse adjustment, along with ±5° precise fine adjustment, enabling micron-level accuracy. This makes it ideal for high-precision machining, testing, and experimental purposes. Its high-performance features come at a cost-effective price point, offering longer service life and reduced maintenance requirements.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
