C&K JD2-25S Dovetail stage (Screw type)

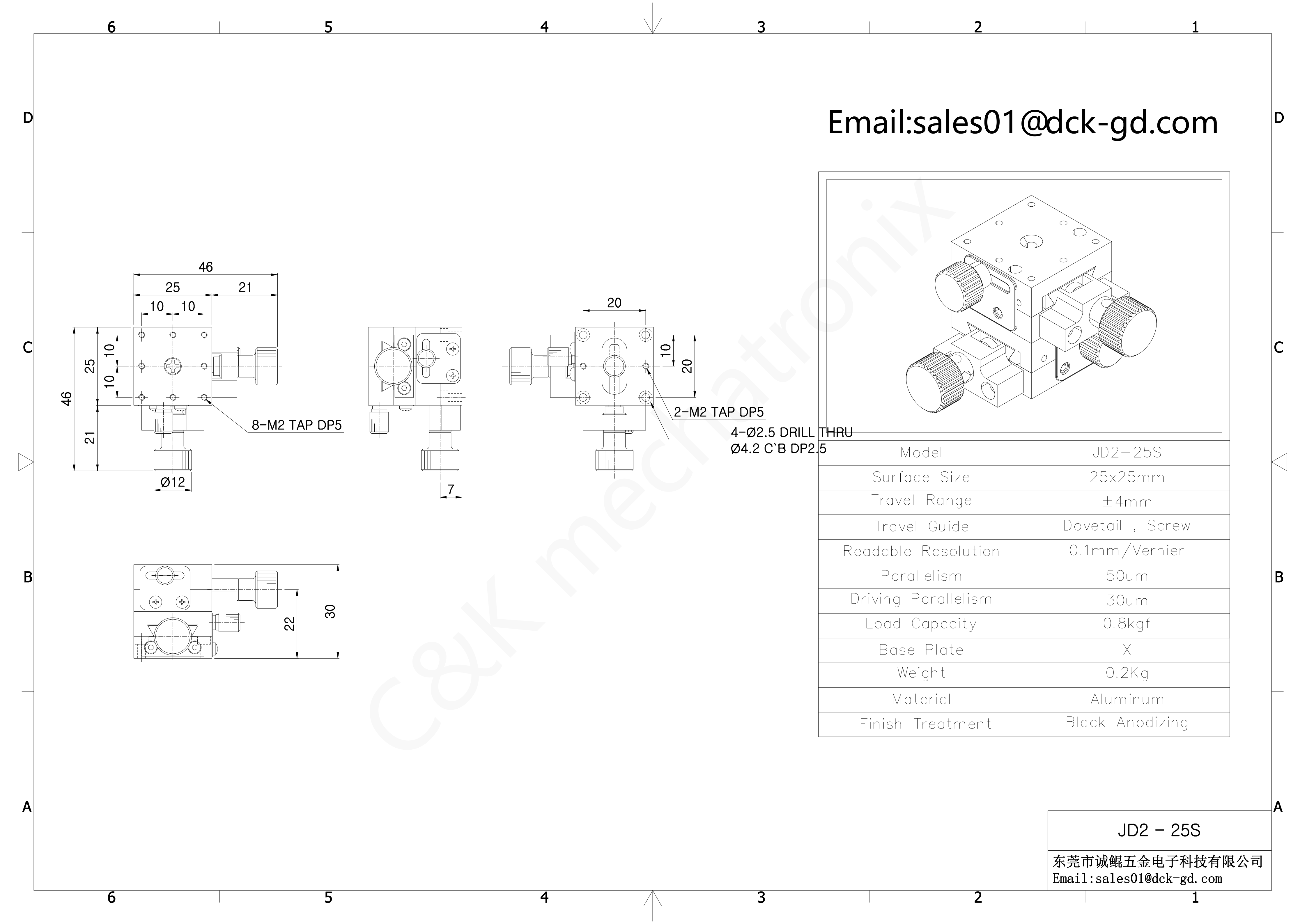

Download as 2D
Download as 3DProduct Parameter List
|
Model |
JD2-25S |
|
Surface Size |
25x25mm |
|
Travel Range |
±4mm |
|
Travel Guide |
Dovetail,Screw |
|
Readable Resolution |
0.1mm/Vernier |
|
Parallelism |
50um |
|
Driving Parallelism |
30um |
|
Load Capacity |
0.8kgf |
|
Weight |
0.2kg |
|
Material |
Aluminum |
|
Finish Treatment |
Black Anodizing |
Describe
The JD2-25S is a compact 2-axis (XY) manual precision linear stage. Constructed from aluminum alloy with a black anodized finish, it features a dovetail guide and screw-driven mechanism. With a small 25×25mm table size, it is designed for multi-axis fine positioning in space-constrained environments.
Key Performance Features
This stage offers ±4mm travel on each axis with 0.1mm vernier resolution, maintaining 50μm parallelism and 30μm driving parallelism to ensure stable, precise movement, while its durable aluminum construction supports a 0.8kgf load for reliable long-term operation.
Cost Effectiveness
Its integrated 2-axis design minimizes system complexity and space requirements, and the low-maintenance dovetail and screw-driven mechanism eliminates the need for frequent repairs or replacements, offering a budget-friendly alternative to more expensive cross-roller stages for low-to-medium load precision applications.
And About us, we are a Sino-Korean joint venture, also a manufacture of stage located at Dongguan, a manufacturing hub in Guangdong. Welcome to visit.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
