C&K JXY-25 X YAxis Manual Stage Optical parts in Stock

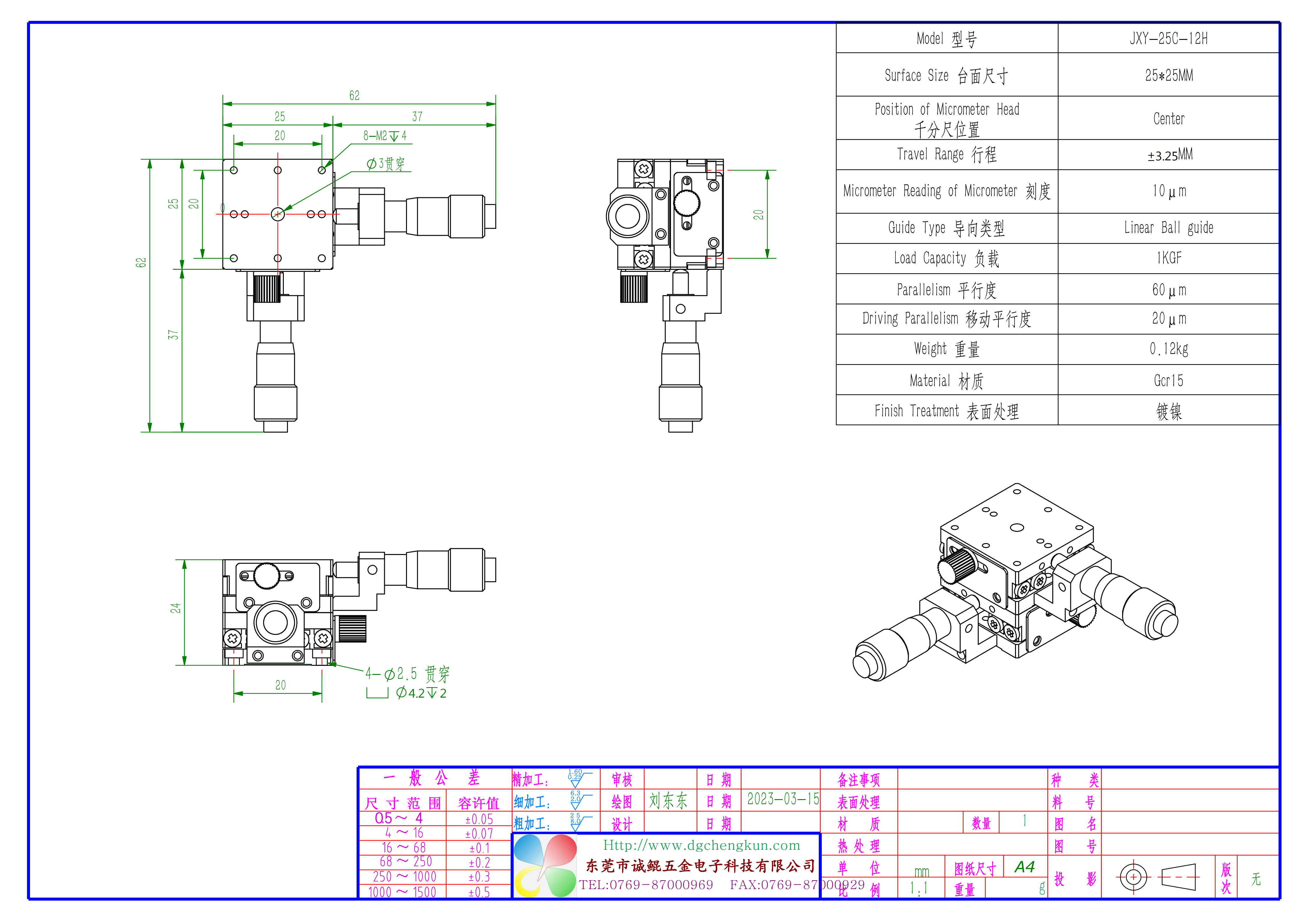

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JXY-25 |
| Surface Size | 25*25mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Linear Ball guided |
| Load capacity | 1.0kgf |
| Parallelism | 60μm |
| Driving Parallelism | 20μm |
| Weight | 0.12kg |
| Material | Steel |
| Finish Treatment | Electroless Nickel Plating |
Describe
The C&K JXY-25 series of manual stages are high-precision positioning devices designed specifically for optical instruments. The stage surface measures 25mm × 25mm, and the overall weight is just 0.12kg, making it ideal for use in miniature, precision optical applications. Equipped with M6 threaded holes, it allows for extended rotary knobs to enable precise adjustments over long distances. The stage features cross-roller guides for smooth and stable operation. With a 10-micron scale, it enables micron-level precision adjustments. It can handle a maximum load of 1.0 kgf, meeting the requirements of high-precision optical positioning. The product is available for OEM/ODM customization and laser marking. It has passed ISO certification and complies with French and German EPR environmental packaging standards. It is well-suited for overseas markets. Manufactured by a domestic precision machinery manufacturer, it is primarily exported to high-end markets in Korea and Japan. Its consistent quality has earned it long-term trust from customers.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
