C&K JCR-40 rotary Manual Stage Micrometer Head adjust

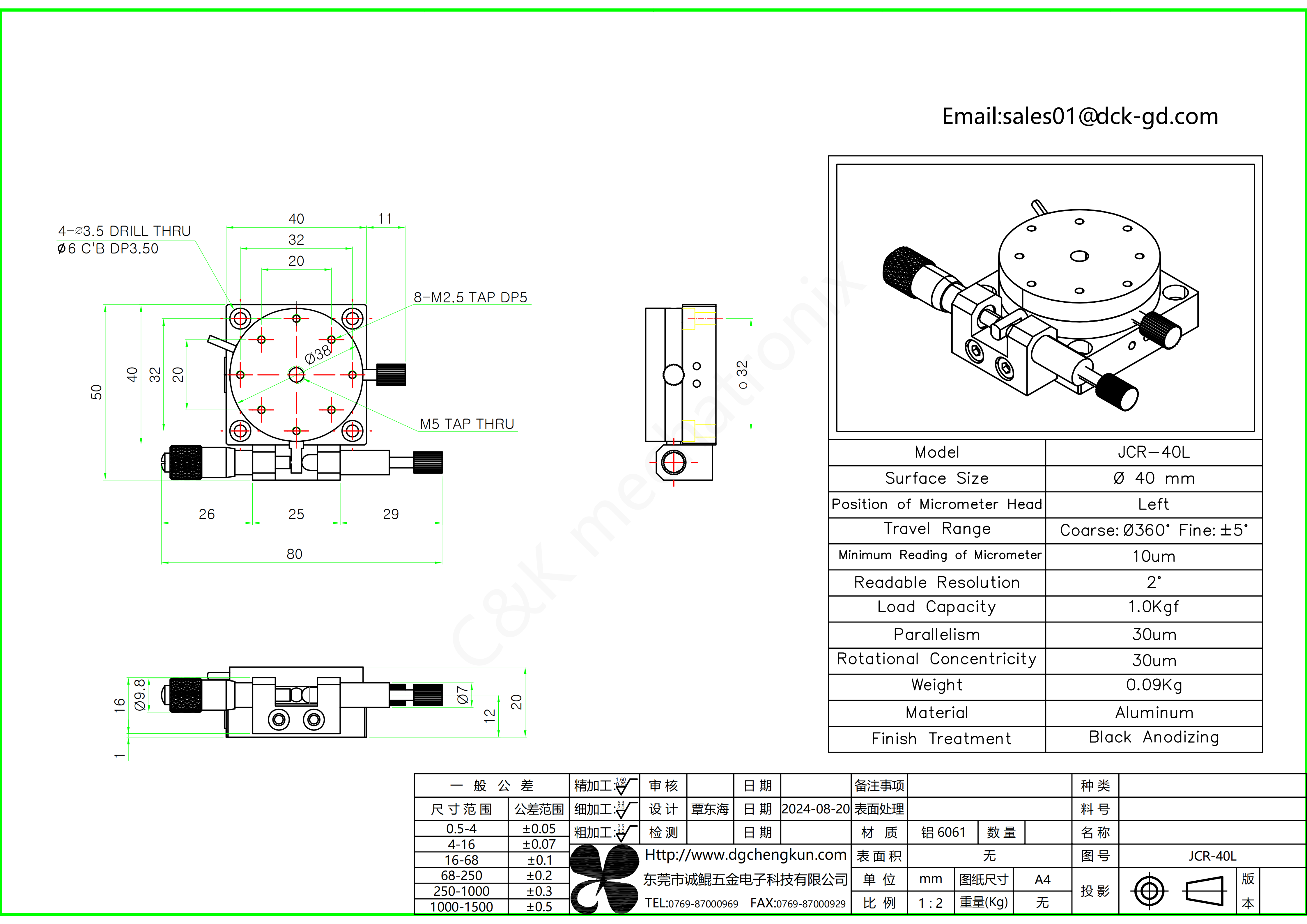

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCR-40 |
| Surface Size | ∅40 |
| Position of Micrometer Head | Left/Right |
| Minimum Reading of Micrometer | 10μm |
| Travel Range | Coarse：∅360° Fine：±5° |
| Readable Resolution | 2° |
| Load capacity | 1.0kgf |
| Parallelism | 30μm |
| Rotational Concentricity | 30μm |
| Weight | 0.09kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The JCR-40 mobile slide table is a precision transmission device designed small surface size applications, featuring small size and easy adjust. The adjust by micrometer head, it is easy adjust and easy reading. Suitable some small Components, or accessories, it supports 360° continuous coarse adjustment, enabling rapid positioning over large angles. Combined with ±5° fine adjustment, it achieves micron-level precision, making it ideal for high-precision manufacturing, testing, and scientific experiments.
The frame is made from high-quality, strong materials, ensuring stability and durability. This reduces maintenance costs over time. While maintaining high load-bearing and precision capabilities, the cost-effective design offers significant value for money. Export to Korea, Japan, EU, US and others countries.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
