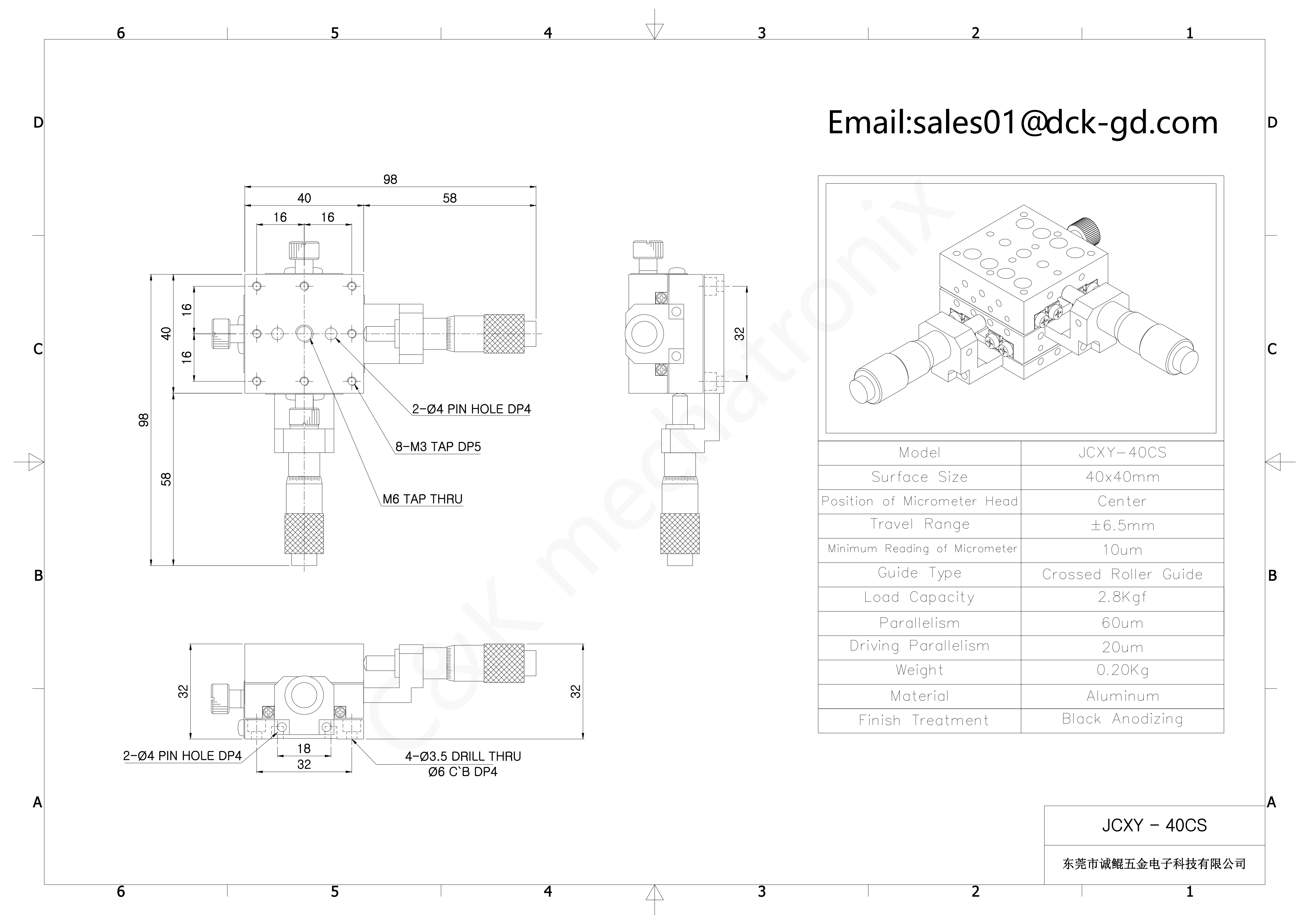

C&K JCXY-40S X Y Axis Manual Stage one-piece model
Download as 2D
Download as 3DProduct Parameter List
|
Model |
JCXY-40S |
|
Sueface Size |
40*40mm |
|
Travel Range |
±6.5mm |
|
Parallelism |
60μm |
|
Draving parallelism |
20μm |
|
Orthogonality |
10μm |
|
Guide type |
Crossed roller guide |
|
Load Capacity |
2.8 kg |
|
Weight |
0.22 kg |
|
Material |
Aluminum |
|
Finish Treatment |
Black Anodizing |
Describe
This integrated manual linear slide stage JCXY-40S features a standard 40×40 mm platform, offering a compact and space-saving design with an effective travel range of up to 13 mm. Compared to traditional assembled slides, it achieves significantly reduced overall height at the same travel specification, making it ideal for applications with limited installation space and maximizing spatial efficiency.
Designed for precise displacement and alignment adjustment, this slide ensures smooth operation and accurate positioning. It is widely used in automated equipment such as dispensing, screen printing, and pad printing systems, serving as an ideal component in precision manufacturing processes.
As a direct manufacturer, we leverage advanced production techniques to deliver export-quality standards comparable to those of Japanese and Korean products. With strict quality control, our products offer stable performance and long service life. By adopting a self-researched and self-manufactured model, we eliminate intermediaries, providing substantial cost advantages and outstanding value for money. Whether for fine displacement adjustments or process alignment tasks, this compact integrated slide handles them effortlessly.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
