C&K JZ-60 Z Axis Manual Stage Optical parts in Stock

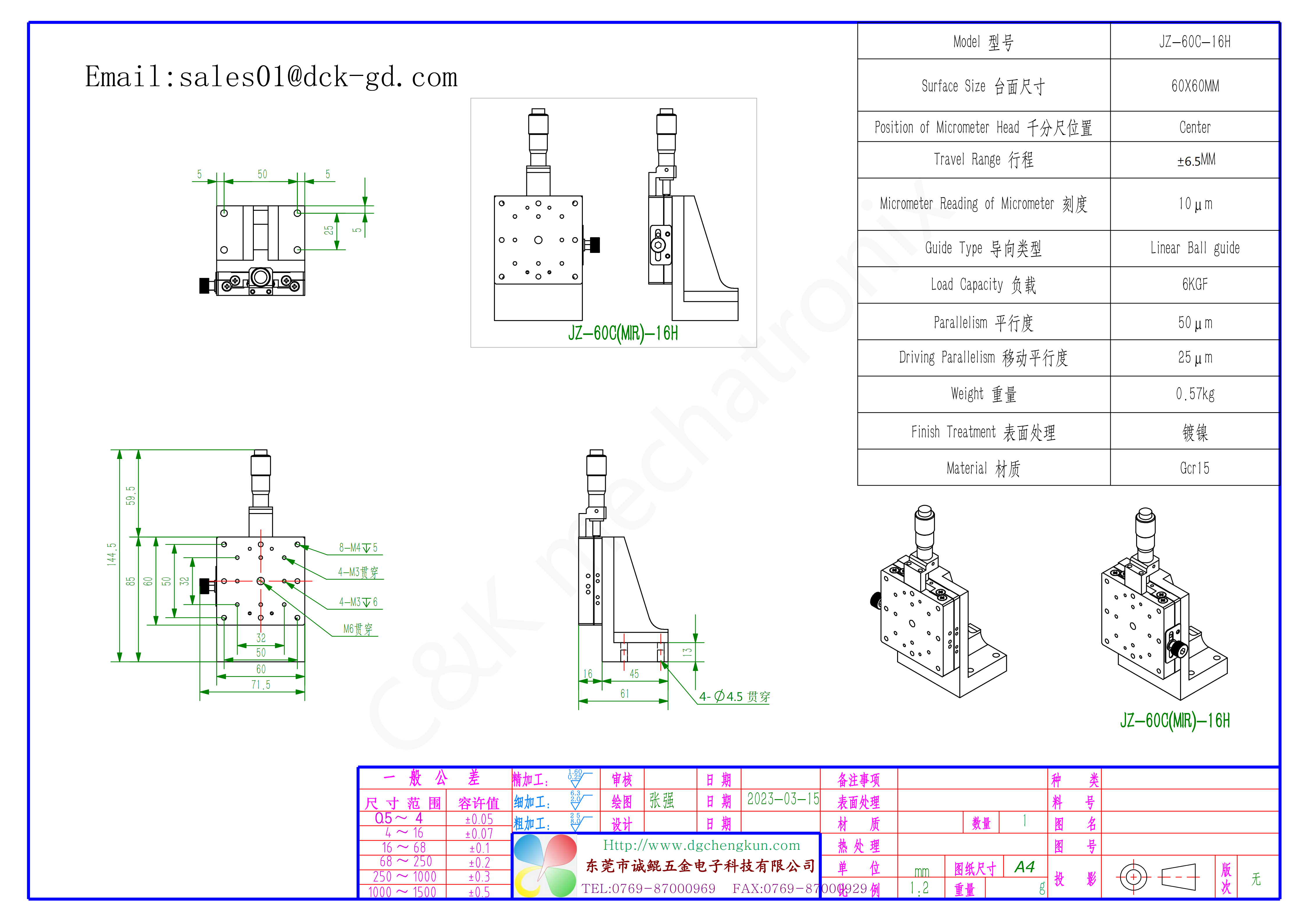

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JZ-60 |
| Surface Size | 60*60mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 6kgf |
| Parallelism | 50μm |
| Driving Parallelism | 25μm |
| Weight | 0.58kg |
| Material | Steel |
| Finish Treatment | Electroless Nickel Plating |
Describe
The C&K JZ-60 series of manual stages are high-precision positioning devices designed specifically for optical instruments. The frame is made of high-quality steel, with a surface treated with electroless nickel plating. This combination ensures excellent structural rigidity, dimensional stability, and resistance to wear and corrosion, thus maintaining high precision over time. The stage’s surface dimensions are 60mm × 60mm, and the overall weight is just 0.58kg. Its compact size and lightweight design make it ideal for various high-precision optical applications. It can handle a load of up to 6 kgf. Equipped with high-precision cross-roller guides, the stage operates smoothly without any shaking. A 10-micron scale allows for precise micrometer-level adjustments, meeting the needs of high-precision positioning. The clamping mechanism has been optimized, providing greater holding force than traditional designs and enhancing positioning stability. This product can be customized to meet specific requirements, and it is also available in OEM/ODM versions. It features laser marking capabilities and has passed ISO certification. It complies with European and German environmental packaging standards and meets all export requirements. Produced by a domestic precision machinery manufacturer, it is primarily sold in the high-end instrument markets of Korea and Japan. Its reliable and durable quality has earned it the trust of customers worldwide.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
