C&K JX-25 X Axis Manual Stage Optical parts in Stock

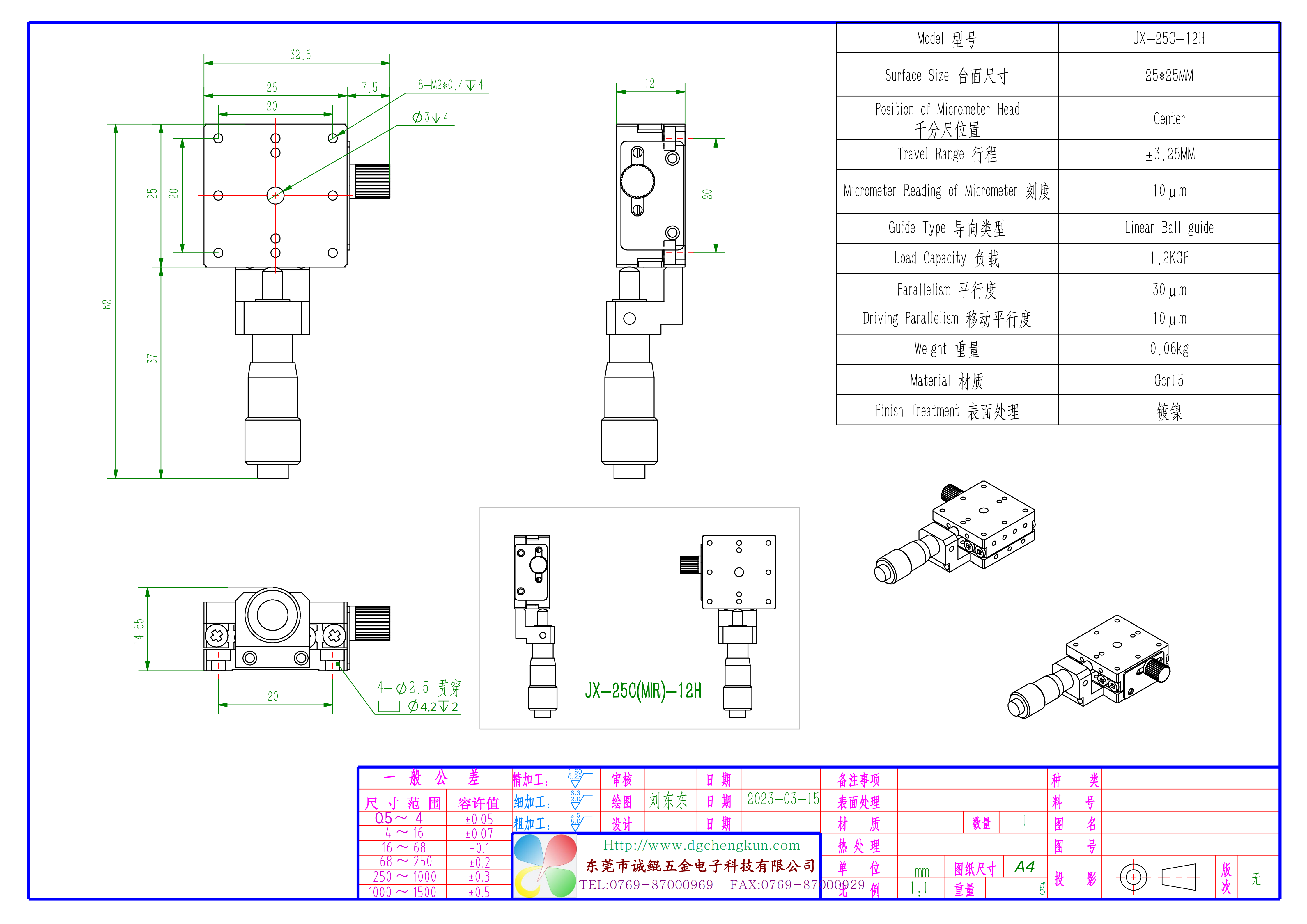

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JX-25 |
| Surface Size | 25*25mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Linear Ball guided |
| Load capacity | 1.2kgf |
| Parallelism | 30μm |
| Driving Parallelism | 10μm |
| Weight | 0.06kg |
| Material | Steel |
| Finish Treatment | Electroless Nickel Plating |
Describe
The C&K JX-25 series of manual stages are high-precision positioning devices designed specifically for optical instruments. The main body is made of steel, with a surface treated with electroless nickel plating. This combination ensures structural rigidity, dimensional stability, and resistance to wear and corrosion, allowing for long-term operation with high precision. The stage surface has dimensions of 25mm × 25mm, and the overall weight is only 0.06kg, making it ideal for use in micro-optical experiments and precision testing applications. The product features M6 threaded holes, allowing for the installation of extended knobs for precise adjustment over long distances, enhancing its usability. It can handle a maximum load of 1.2 kgf. Equipped with high-rigidity cross-roller guide rails, the stage operates smoothly without any movement. Combined with a 10μm precision scale, it meets the requirements for precise displacement control in optical applications. The product is available for OEM/ODM customization and can be laser-marked. It has passed ISO certification and complies with environmental packaging standards in France and Germany. It boasts comprehensive market approval credentials. Developed and produced by a domestic precision machinery company, it is primarily sold in the high-end scientific research and industrial instrumentation markets in South Korea and Japan. Its stable performance has earned it long-term recognition in the industry.
