C&K JX-40 X Axis Manual Stage Optical parts in Stock
Download as 2D
Download as 3DProduct Parameter List

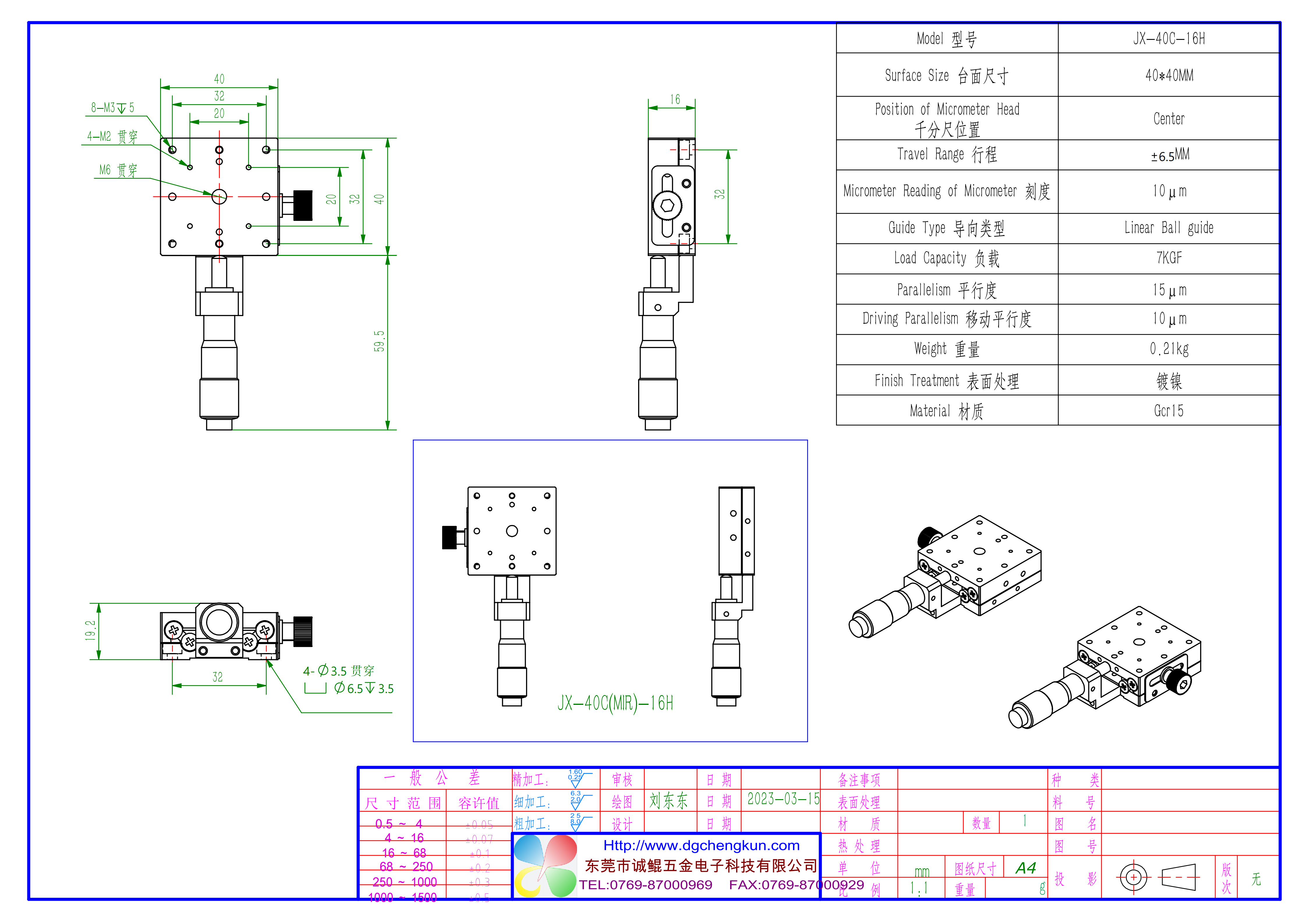

| Model NO. | JX-40 |
| Surface Size | 40*40mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Linear Ball Guide |
| Load capacity | 7kgf |
| Parallelism | 15μm |
| Driving Parallelism | 10μm |
| Weight | 0.21kg |
| Material | Steel |
| Finish Treatment | Electroless Nickel Plating |
Describe
The C&K JX-40 series of manual stages are high-precision positioning devices designed specifically for optical instrument systems. The main body of the product is made from high-quality steel, with a surface treated with electroless nickel plating. This combination ensures excellent structural rigidity, dimensional stability, and wear-resistant, corrosion-resistant properties, enabling long-term operation with high precision. The worktable size is 40mm × 40mm, and the overall weight of the device is only 0.21kg. Its lightweight design makes it ideal for various applications such as precision optical testing, scientific research, and optical component integration. Equipped with high-precision cross-roller guides, the device operates smoothly without any movement or friction. Along with a 10μm precision scale, it allows for precise micro-metric adjustments, fully meeting the technical requirements of precision positioning in the optical field. Its rated load capacity is up to 7kgf, demonstrating outstanding load-bearing performance. This product offers OEM/ODM customization options and laser engraving services. It has passed ISO certification and complies with French and German EPR environmental packaging standards, ensuring compliance with environmental regulations. It also meets all the requirements for entry into overseas markets. Produced by a leading Chinese manufacturer of precision machinery, these products are sold to high-end scientific research and industrial instrument markets in South Korea and Japan. Their reliable quality has earned them long-term recognition and trust from customers worldwide.
