C&K JMSZ-80 horizontal Z Axis motorized Stage
Download as 2D

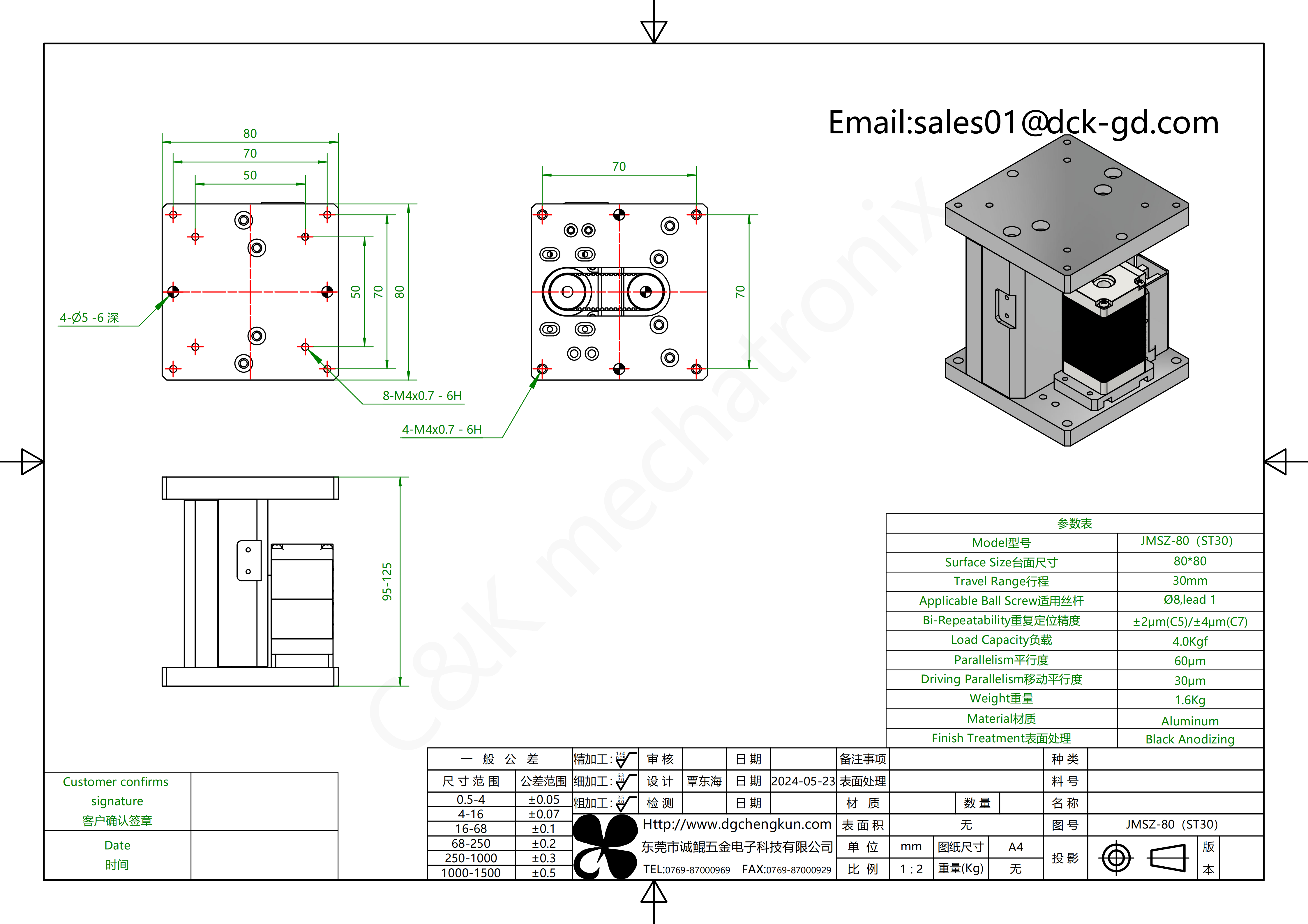

Download as 3DProduct Parameter List
|
Model |
JMSZ-80 |
|
Sueface Size |
80*80mm |
|
Travel range |
30mm |
|
Applicable Ball Screw |
Φ8，lead 1 |
|
Bi-Repeatability |
±2μm（C5）/±4μm（C7） |
|
Load Capacity |
4.0kgf |
|
Parallelism |
60μm |
|
Driving Parallelism |
30μm |
|
Wright |
1.6kg |
|
Material |
Aluminum |
|
Finish Treatment |
Black Anodizing |
Describe
This electric stage JMSZ-80 is equipped with an 80×80mm standard load-bearing platform. Featuring a compact and space-saving structure, it is specially optimized for applications with limited installation space and narrow internal layouts. It can be easily installed in confined equipment enclosures and tight working areas, delivering excellent space adaptability.
Powered by a dedicated 28 stepper motor, the unit boasts high integration. The installation and operation procedures are extremely simple. No complicated modification or commissioning is required — it can be put into normal operation immediately after connecting to the drive control system and controller. This greatly cuts down assembly and debugging time and lowers the operating threshold, making it ideal for quick installation and mass supporting applications.
It offers a long effective travel of 30 mm, which covers conventional displacement adjustment requirements for most industries and features strong versatility to fulfill tasks such as precision movement, positioning and material feeding. With a rated load of 4 kgf, this model is designed for light-duty precision operation. It runs smoothly and achieves accurate positioning, making it widely applicable to semiconductor equipment, industrial automation machinery, precision testing instruments and other related fields.
Manufactured in strict accordance with export-grade quality standards, the product undergoes rigorous inspections throughout material selection, processing, assembly and finished product testing. It operates stably with a low failure rate and solid, durable construction. As a direct manufacturer, we offer competitive pricing while maintaining superior quality, ensuring outstanding cost performance. Additionally, we provide a **one-year warranty** for the complete unit. Our professional after-sales team offers full support and timely solutions to any operational issues, so you can purchase and use our products with complete peace of mind.
