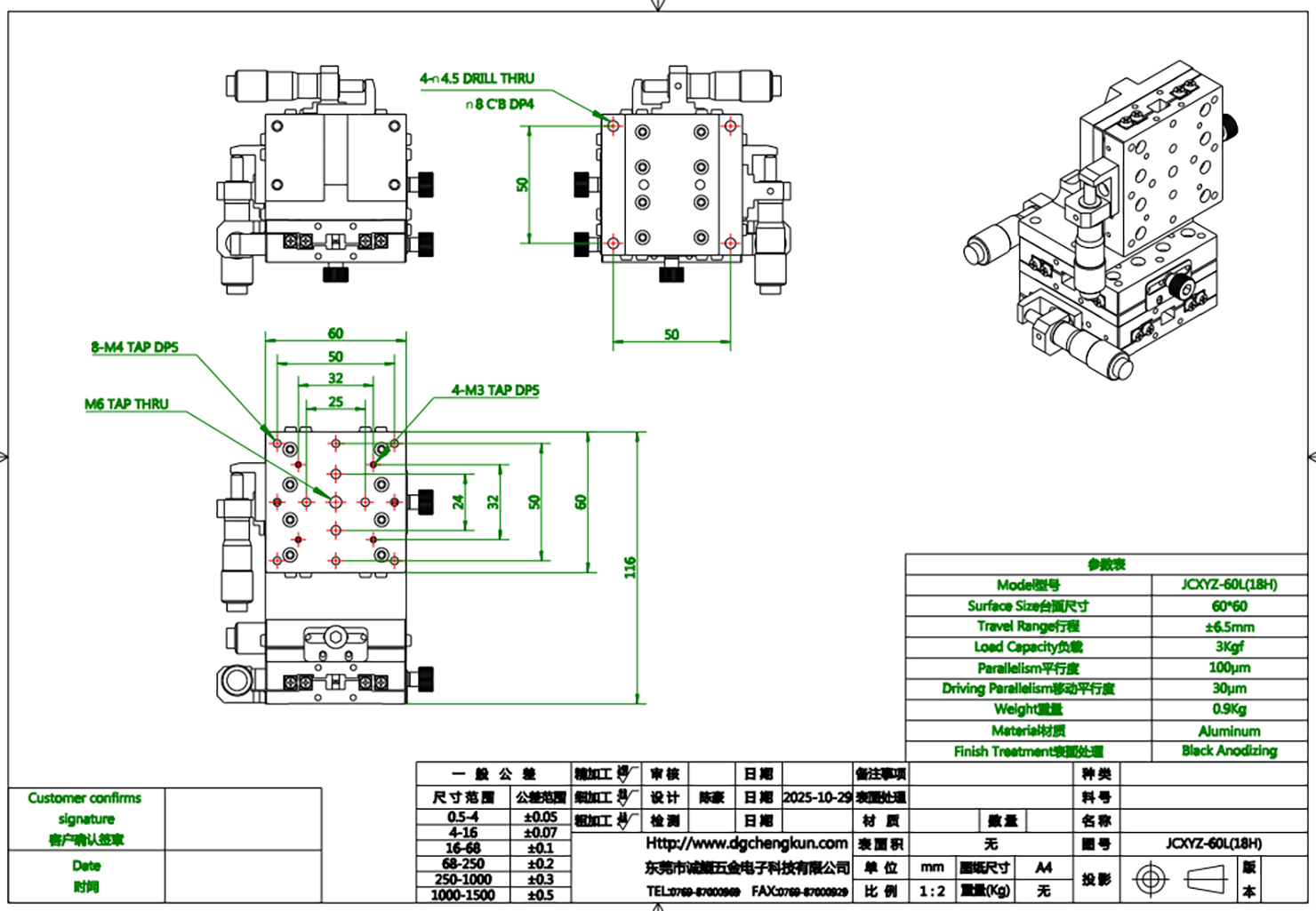

C&K JCXYZ-60 X Y Z Axis Manual Stage Optical parts in Stock
Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCXYZ-60 |
| Surface Size | 60*60mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 3kgf |
| Parallelism | 100μm |
| Driving Parallelism | 30μm |
| Weight | 0.90kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCXYZ-60 series of manual precision slides are high-precision positioning devices designed specifically for optical instruments. They feature an integrated XZ-axis slide structure, resulting in a compact overall design. The table size is 60mm × 60mm, with a weight of 0.90kg, making them ideal for system integration in various high-precision applications. The XY axes utilize feed screw drives for precise horizontal adjustment, while the Z-axis employs rack and pinion technology for fast vertical movement.
This configuration allows for flexible adjustment across all three axes. The device can handle a load of up to 3kgf, combining lightweight design with strong load-bearing capacity. It’s equipped with high-precision cross-roller guides for smooth operation. Together with a 10-micron scale, it enables micrometer-level precision adjustments, meeting the demands of optical precision positioning. The product is available for OEM/ODM customization and laser engraving.
It has passed ISO certification and complies with European and German EPR environmental packaging standards. This ensures environmental compliance and facilitates cross-border trade. Manufactured by a domestic specialist in precision machinery, this product is primarily targeted at high-end markets in Korea and Japan. Its stable quality has earned it long-term trust from customers.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
