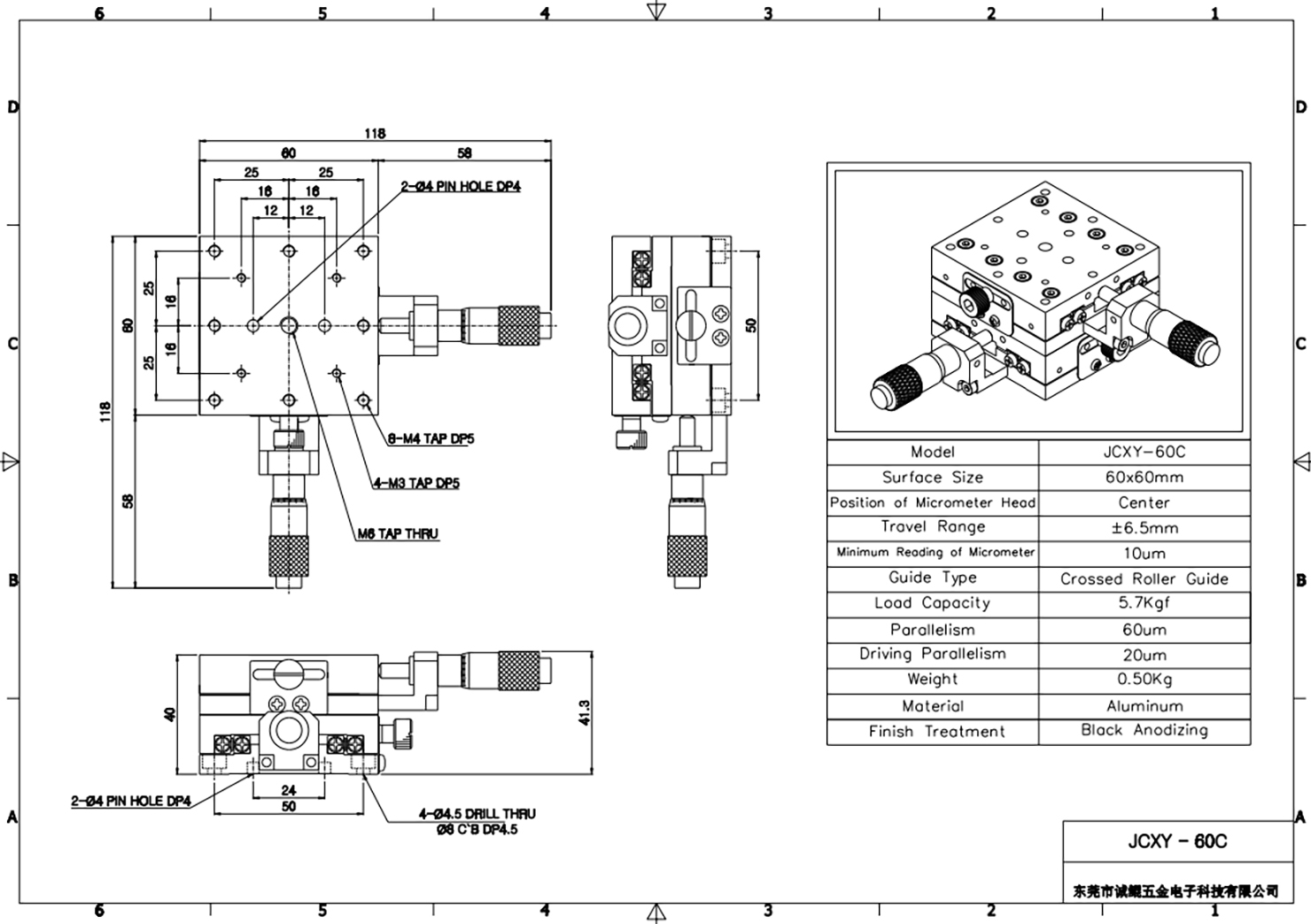

C&K JCXY-60 X Y Axis Manual Stage Optical parts in Stock
Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCXY-60 |
| Surface Size | 60*60mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 5.7kgf |
| Parallelism | 60μm |
| Driving Parallelism | 20μm |
| Weight | 0.50kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCXY-60 series of manual positioning stages are high-performance devices designed specifically for optical instruments, precision testing, and detailed laboratory adjustments. With their precise positioning, compact design, and lightweight construction, they are ideal for use in various applications requiring extreme accuracy. The chassis is made of high-quality, lightweight aluminum alloy. The tabletop dimensions are 60mm × 60mm, and the overall weight is just 0.5kg. This makes them easy to carry and integrate into various systems.
Transport and assembly are also very convenient. The stage can withstand a maximum load of 5.7 kgf, ensuring both practicality and efficient operation. It features high-precision cross-roller guides that ensure smooth operation without any lag or friction. The positioning accuracy is stable and reliable. Combined with a precision scale with a minimum resolution of 10 microns, it enables precise micro-adjustments at the micron level. This product can be customized through OEM/ODM services, and custom laser markings can be applied to meet specific requirements. It has also passed ISO certification, and its packaging complies with environmental standards in France, Germany, and the EU.
With its excellent quality and compliance with environmental regulations, it is an ideal choice for entering the European market. Produced by domestic manufacturers specializing in precision components, this product is widely exported to markets like South Korea and Japan due to its reliable performance and cost-effectiveness. It represents an excellent option for achieving high-precision positioning in optical systems, automated equipment, and precision testing applications.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
