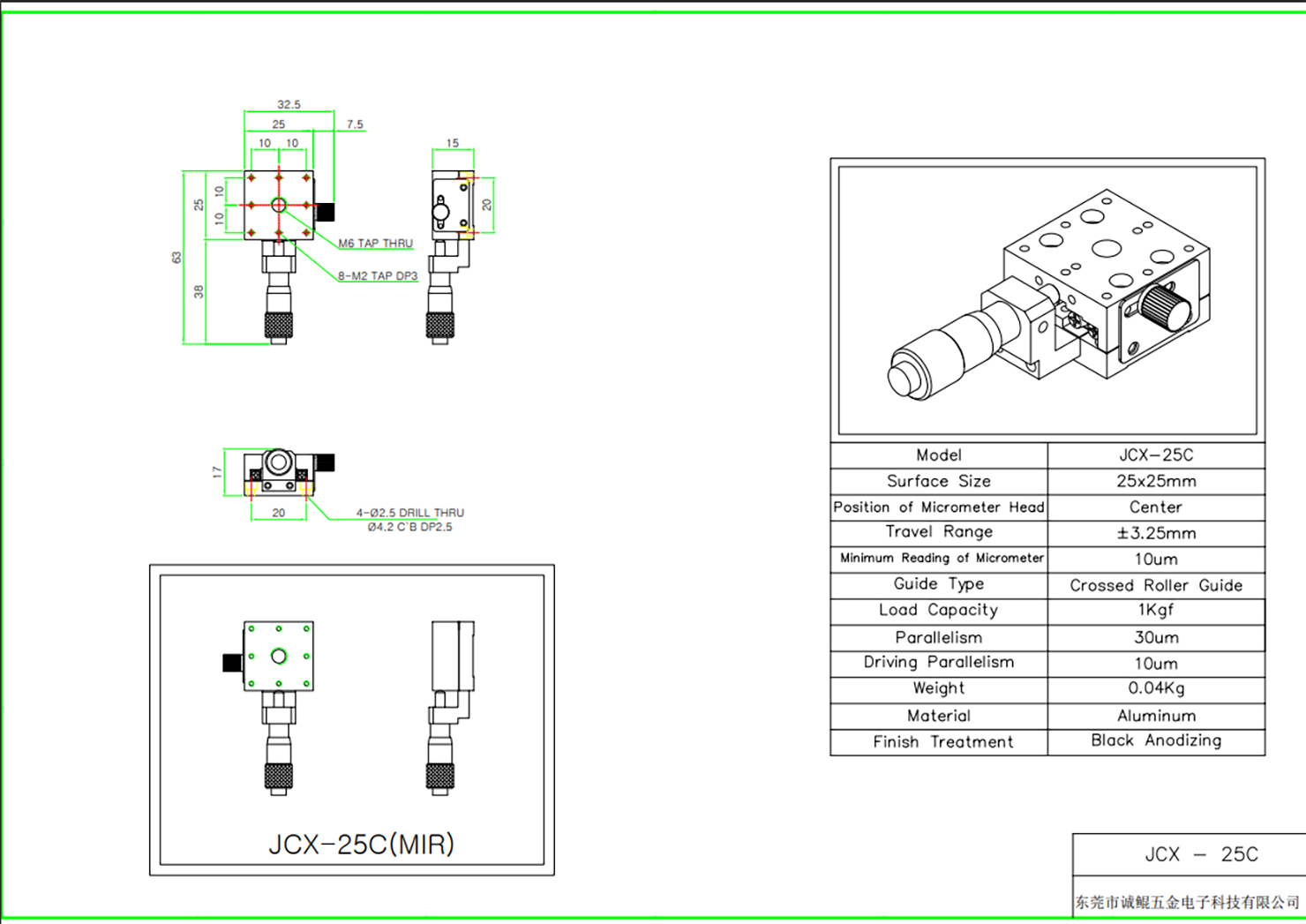

C&K JCX-25 Type X-Axis Manual Adjustment Platform
Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCX-25 |
| Surface Size | 25*25mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 1kgf |
| Parallelism | 30μm |
| Driving Parallelism | 10μm |
| Weight | 0.04kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCX-25 series of manual precision slides are high-precision positioning devices designed specifically for optical instruments. The platform size is 25×25 millimeters, with a weight of just 0.04 kilograms. Its maximum load capacity reaches 1 kilogram-force.
The main body of the product is made of aluminum alloy, making it extremely lightweight. The surface is treated with black anodization to effectively prevent light reflection. Additionally, it offers OEM/ODM customization options, and the surface can also be laser-engraved.
This product complies with ISO standards and meets the EPR packaging regulations of France and Germany, ensuring excellent environmental performance and strong market competitiveness. As a Chinese manufacturer, we export most of our products to South Korea and Japan.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
