C&K JCHZ-60 Z Axis Manual Stage Optical parts in Stock

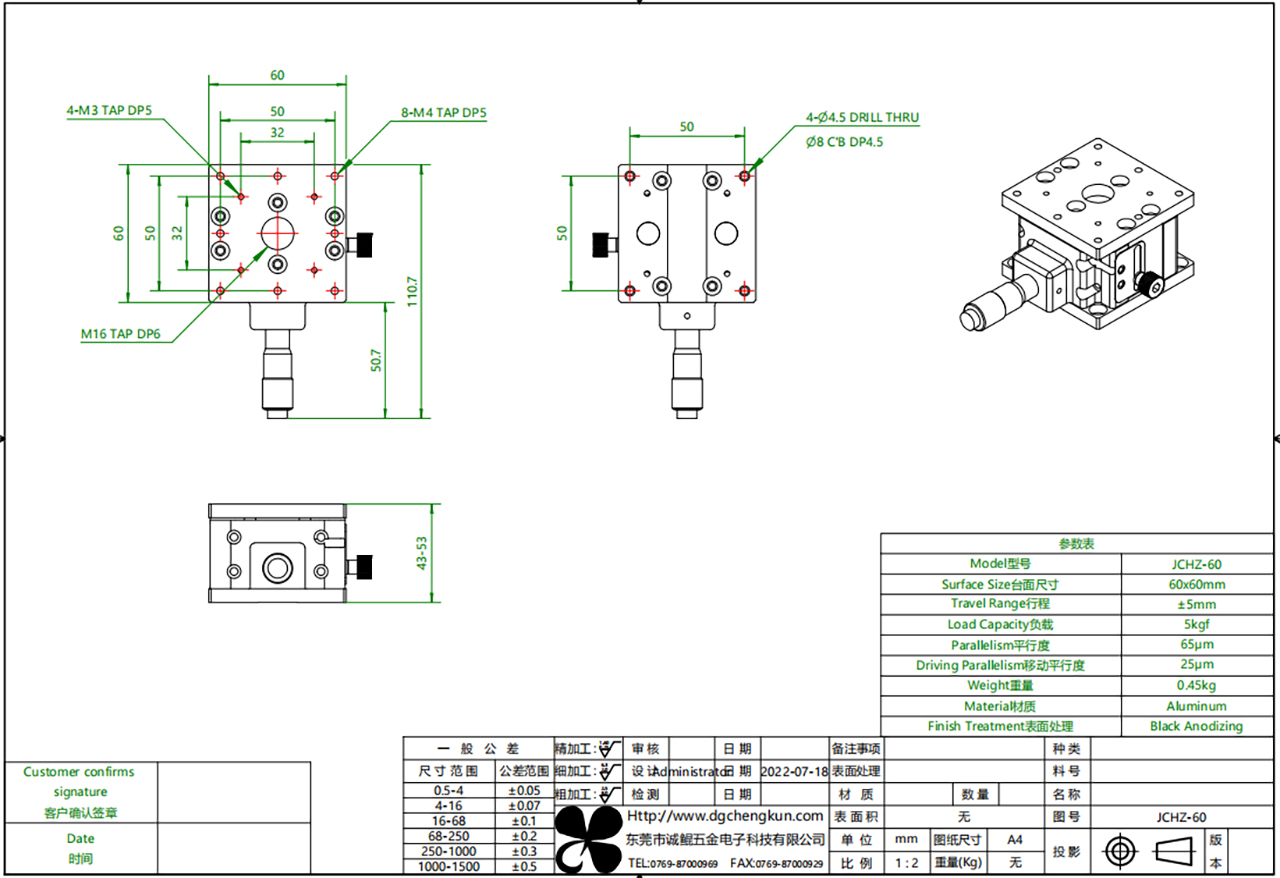

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCHZ-60 |
| Surface Size | 60*60mm |
| Position of Micrometer Head | Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 5kgf |
| Parallelism | 65μm |
| Driving Parallelism | 25μm |
| Weight | 0.45kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCHZ-60 series of manual displacement tables are high-precision positioning platforms designed specifically for optical instruments. They feature a compact and lightweight design, ensuring precise positioning and stable operation.
These tables are ideal for various high-precision optical applications. The surface size is 60×60 mm, and the itself weighs only 0.45 kg, making it easy to install and integrate into various systems. With a rated load capacity of 5 kgf, the positioning accuracy remains stable under load.
The tables use cross-roller guides, which reduce friction, ensure smooth operation with no gaps, and provide excellent resistance to deflection and durability. The dial indicator used comes with a minimum resolution of 10 μm, enabling precise micro-adjustments at the micron level.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
