C&K JCXY-25 X YAxis Manual Stage Optical parts in Stock

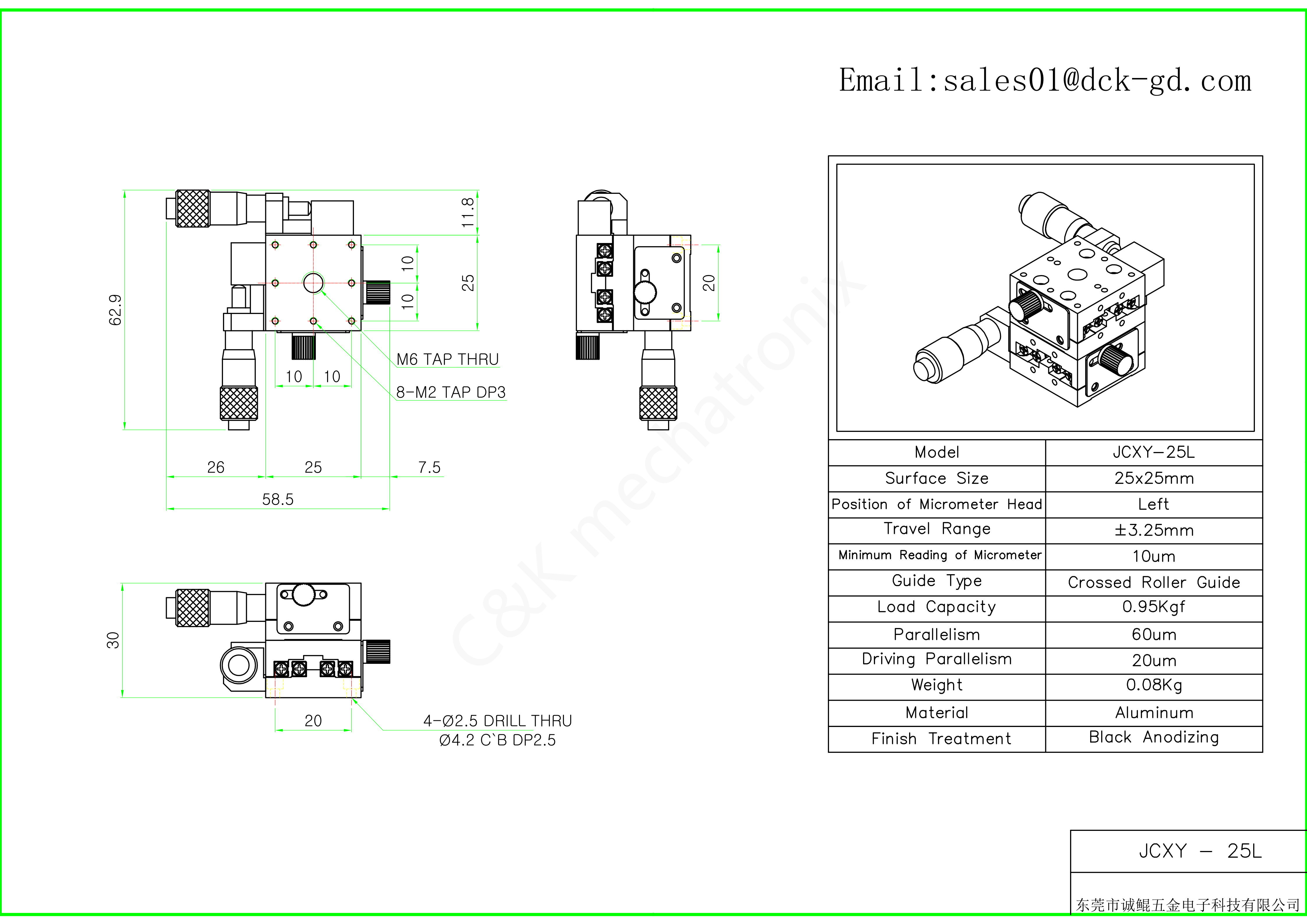

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCXY-25 |
| Surface Size | 25*25mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Cross roller guided |
| Load capacity | 0.95kgf |
| Parallelism | 60μm |
| Driving Parallelism | 20μm |
| Weight | 0.08kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCXY-25 series manual displacement stage is a high-performance, precision positioning device designed specifically for optical instruments, precision testing, and delicate adjustment tasks in laboratories. With its core advantages of high precision, compact size, and lightweight design, it is ideal for use with various high-precision equipment. The frame is made of lightweight, high-quality aluminum alloy. The tabletop measures 25mm × 25mm, and the entire device weighs only 0.08 kilograms. It’s easy to carry and integrate, and both transportation and installation are efficient and convenient. It can withstand a maximum load of 0.95 kilograms. Balancing practicality and efficiency, it features high-precision cross-roller guides that ensure smooth operation without any lagging. The positioning accuracy is stable and reliable. Equipped with a micrometer scale with a minimum resolution of 10μm, it enables precise fine-tuning. The product offers OEM/ODM customization options as well as custom laser marking services to meet specific requirements. It has also passed ISO certification. Its packaging meets environmental standards set by France, Germany, and the EU, ensuring compliance with environmental and quality regulations. Thus, it’s well-suited for the European market. Produced by a leading Chinese manufacturer of precision components, this product combines stable performance with excellent cost-effectiveness. It’s ideally suited for export to premium markets like South Korea and Japan. It represents an excellent choice for achieving high-precision positioning in optical systems, automation equipment, and precision testing applications.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
