C&K JCX-80-13 X Axis Manual Stage Optical parts in Stock

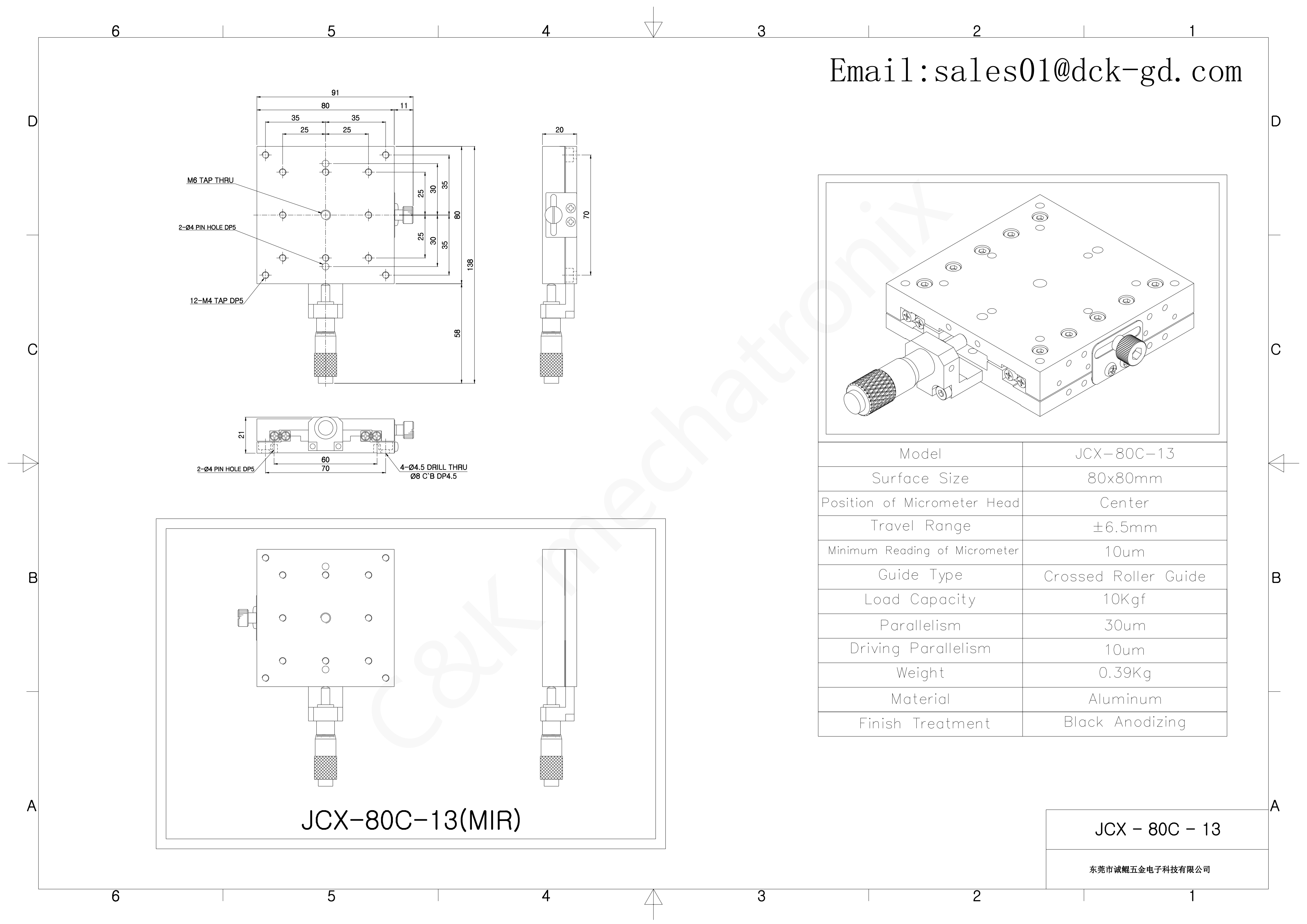

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCX-80-13 |
| Surface Size | 80*80mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 10kgf |
| Parallelism | 30μm |
| Driving Parallelism | 10μm |
| Weight | 0.40kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCX-80-13 series of manual stage devices are high-precision positioning systems designed specifically for optical instruments. Their frames are crafted from high-quality, highly rigid aluminum alloy, ensuring they are lightweight yet strong, corrosion-resistant, and excellent at dissipating heat. They retain their precision over long-term use, preventing accuracy degradation. This makes them ideal for applications requiring high precision, such as microscopic observation, precise alignment, and optical testing. The stage has a surface size of 80×80 millimeters and weighs just 0.40 kilograms, making it easy to transport and install. Yet, it can handle loads up to 10 kilograms, proving its practicality. Equipped with high-quality cross-roller guide rails, it operates smoothly without any lagging. With a minimum resolution of 10 microns, it allows for precise micro-adjustments, perfectly meeting the needs of high-precision positioning in the optical field. The product offers OEM/ODM customization options, along with laser engraving services to meet specific requirements. It also meets ISO standards and complies with French and German EPR environmental packaging regulations, ensuring both quality and environmental compliance. This enhances its competitiveness in overseas markets and simplifies import procedures. As a professional Chinese manufacturer of precision components, we boast advanced production techniques and strict quality control processes. Our products are of top quality and are primarily exported to premium markets like South Korea and Japan. Our stable performance and reliable quality have earned us long-term recognition from customers worldwide.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
