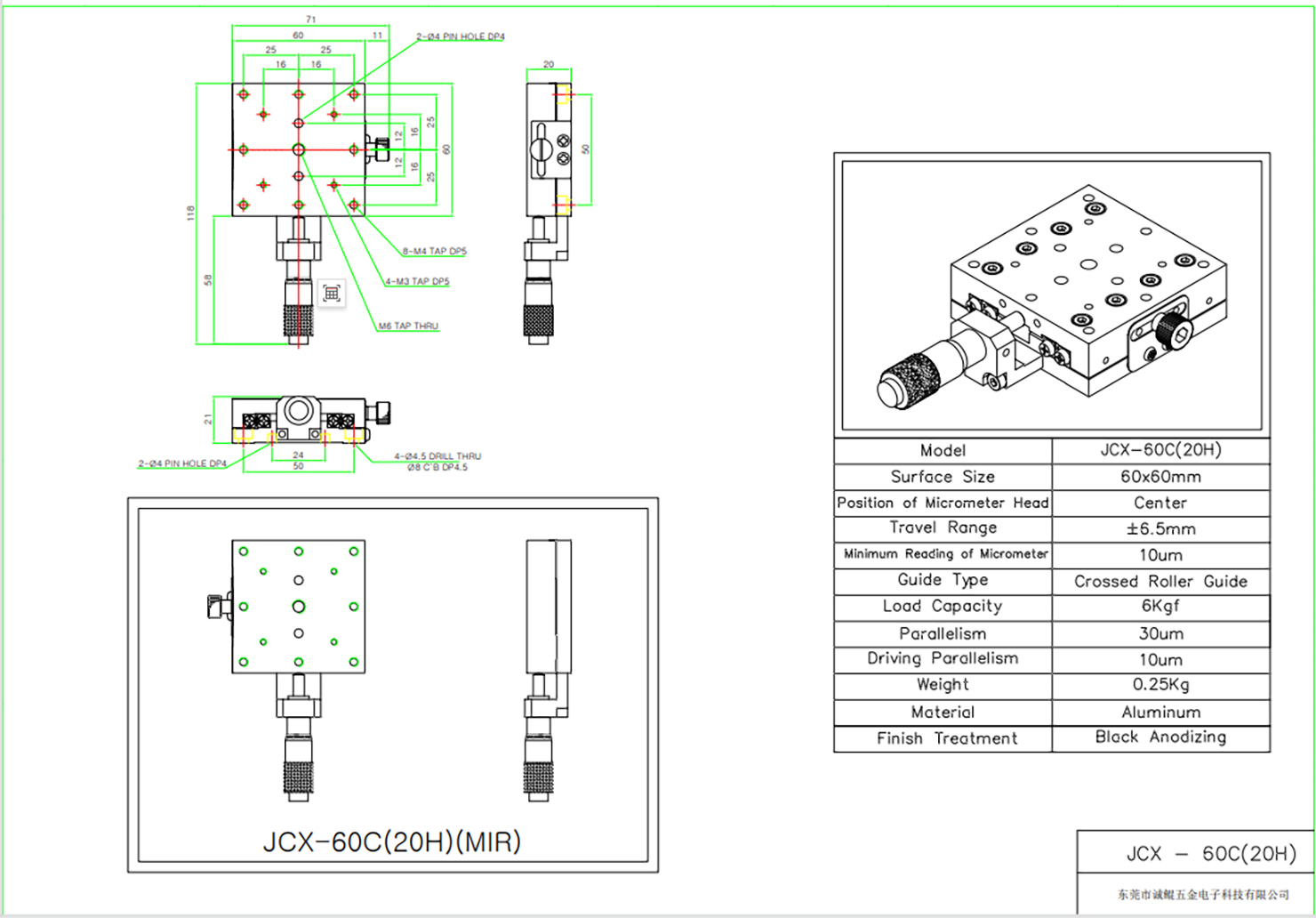

C&K JCX-60 X Axis Manual Stage Optical parts in Stock
Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCX-60 |
| Surface Size | 60*60mm |
| Position of Micrometer Head | Left/Right/Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 6kgf |
| Parallelism | 30μm |
| Driving Parallelism | 10μm |
| Weight | 0.25kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCX-40 series manual stage is a high-precision positioning device designed specifically for optical instruments. Its tabletop measures 60*60 millimeters, weighs only 0.14 kilograms, and has a maximum load capacity of 3 kilograms. The stage features feed-driven precision adjustment in the horizontal direction.
Its frame is made from high-quality aluminum alloy, ensuring both lightweight design and structural rigidity. It’s durable, corrosion-resistant, and resistant to deformation. With excellent heat dissipation properties, its accuracy remains stable over long-term use. This makes it ideal for precise optical observations and alignment tasks. Additionally, it supports OEM/ODM customization and can be engraved with lasers.
The product meets ISO standards and complies with French and German EPR packaging regulations, ensuring environmental friendliness and competitiveness in the market. We are a professional manufacturer of precision components in China, with products primarily exported to South Korea and Japan. Our quality meets the demands of overseas high-end markets.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
