C&K JCX-100-50 X Axis Manual Stage Optical parts in Stock

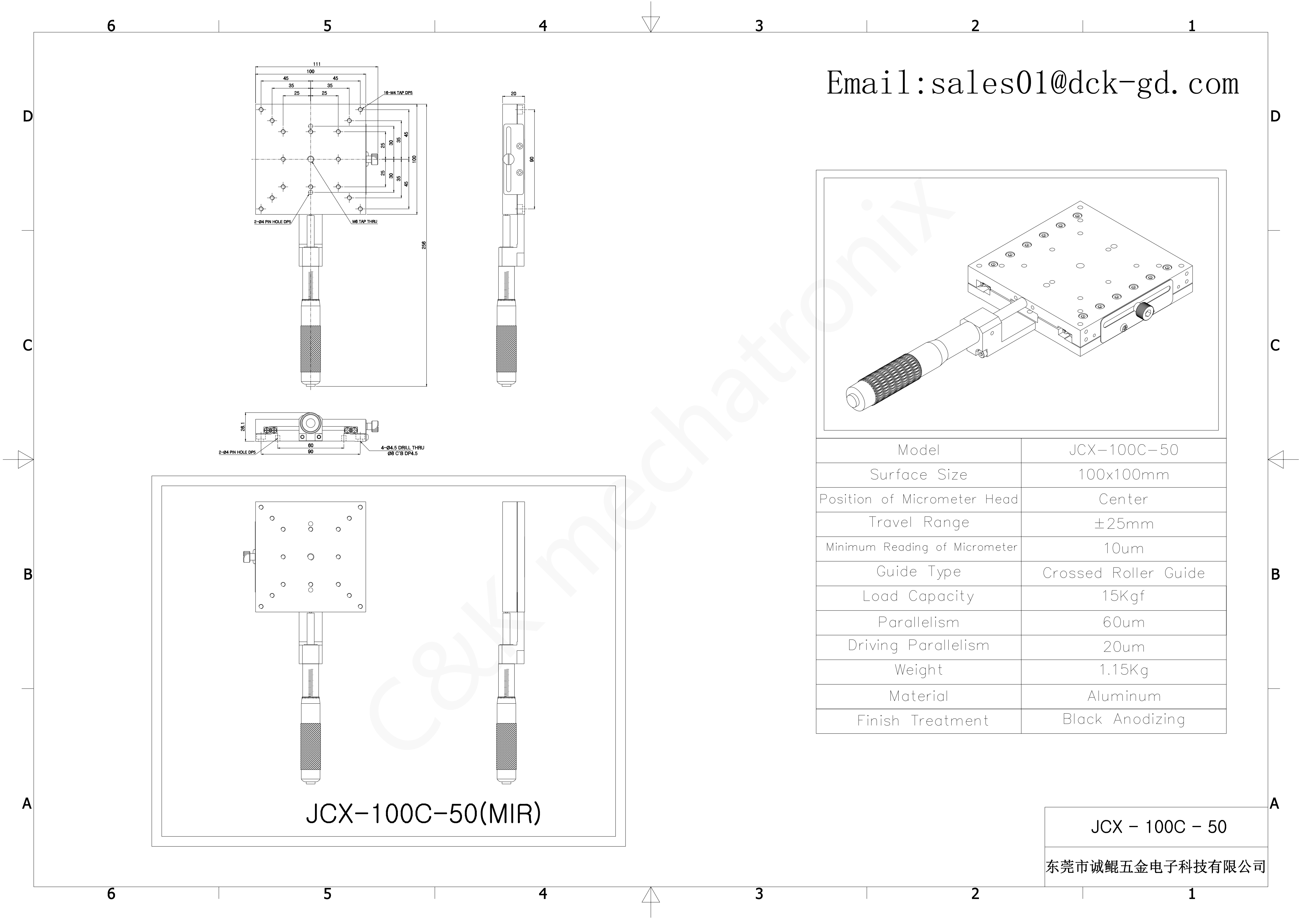

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCX-100-50 |
| Surface Size | 100*100mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 15kgf |
| Parallelism | 60μm |
| Driving Parallelism | 20μm |
| Weight | 1.2kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCX-100-50 series of manual stages are high-precision positioning devices designed specifically for optical instrument systems. Their main structure is made of high-rigidity, high-quality aluminum alloy, combining lightweight design with excellent mechanical stiffness. They also feature good corrosion resistance and heat dissipation properties. Even after long-term continuous use, there is no significant deformation, ensuring stable positioning accuracy over time. These stages are ideal for various high-precision optical applications such as microscopic observation, optical testing, and precise alignment. The stage surface measures 100mm × 100mm, allowing it to handle various sample sizes. It provides stable loading under normal conditions, with a maximum axial load capacity of 15 kgf. The internal design features cross-roller guide rails for smooth operation. With a minimum resolution of 10μm, it enables precise micro-adjustments, fully meeting the technical requirements for high-precision positioning in the optical field. The product offers OEM/ODM customization options, includes laser marking services, meets ISO standards, and complies with French and German EPR environmental packaging regulations. It boasts a thorough quality control system and meets environmental compliance requirements, making it ideal for export to overseas markets. Produced by a Chinese manufacturer specializing in precision transmission components, this product combines advanced manufacturing techniques and strict quality control. It is primarily exported to high-end precision manufacturing markets like South Korea and Japan. Its reliable performance has earned it widespread recognition among overseas customers.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
