C&K JT-8087 Pitching Angle Axis Manual Goniometer Stage

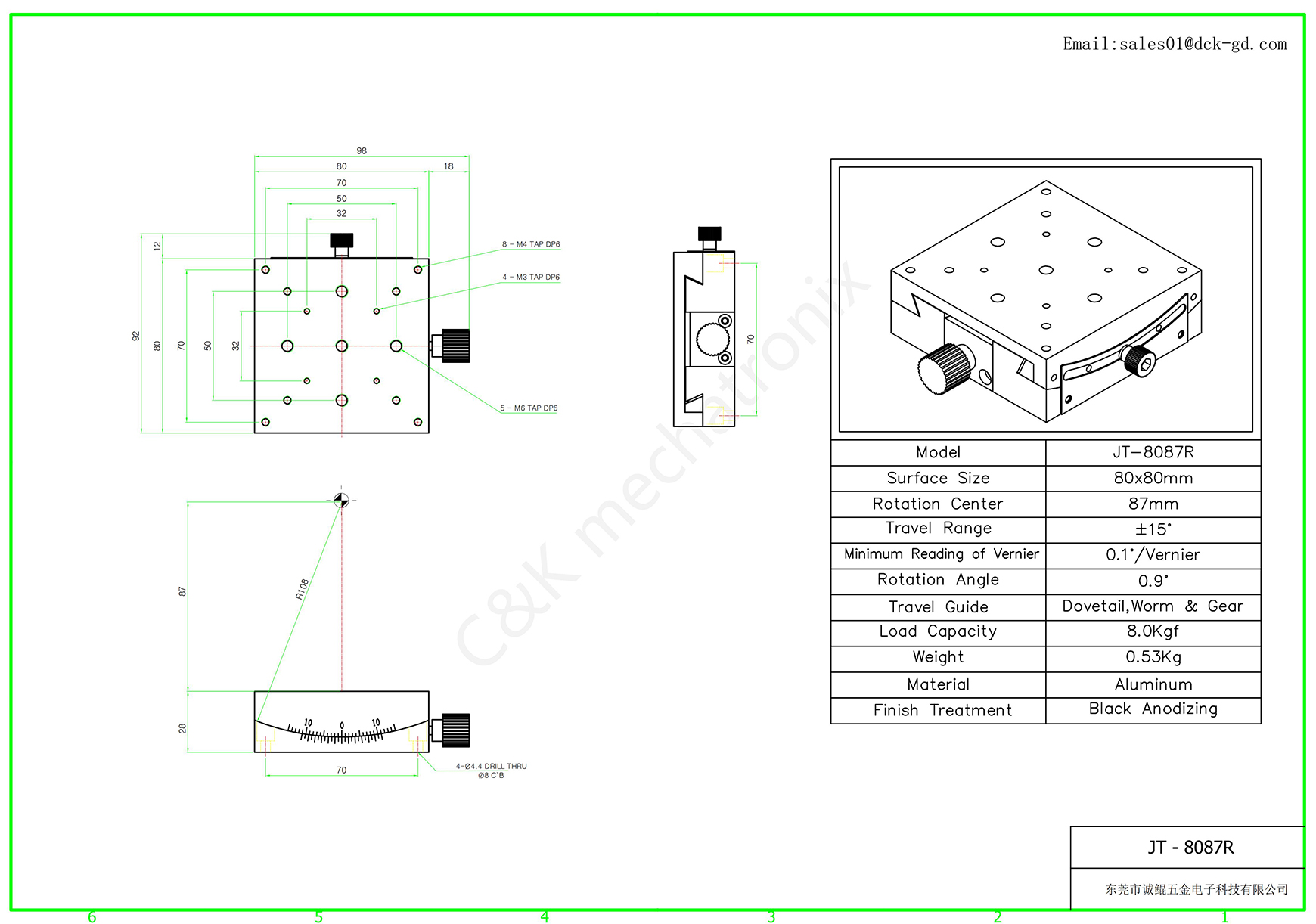

Download as 2D
Download as 3DProduct Parameter List
| Model | JT-8087R |
| Surface Size | 80×80mm |
| Rotation Center | 87mm |
| Travel Range | ±15' |
| Minimum Reading of Vernier | 0.1/Vernier |
| Rotation Angle | 0.9' |
| Travel Guide | Dovetail,Worm &Gear |
| Load Capacity | 8.0Kgf |
| Weight | 0.53Kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The manual angle measuring slide JT-8087 is a practical device that combines angle adjustment and precise measurement functions. It is specially designed for various scenarios that require angle positioning and inclination detection. It is widely applicable to laboratory angle calibration, industrial tooling angle adjustment, and small workpiece angle detection, among other operational needs.
The core performance of this slide is solid: it is equipped with a stable 80×80mm platform that can securely support a 8kg load, meeting the angle adjustment requirements of most small and medium-sized workpieces; the angle adjustment range is ±15°, covering the angle adjustment range under normal working conditions, and combined with a high-precision adjustment structure, it can achieve precise angle control, ensuring the dual accuracy of adjustment and measurement.
In terms of cost-effectiveness, JT-8087 has significant advantages. It ensures excellent quality and high-precision performance while offering customers a low purchase cost with a reasonable price. What's more, as a joint venture between China and South Korea, we deeply integrate advanced technologies and processes from both countries, possess strong R&D capabilities and a standardized production system, and strictly control the quality from design to manufacturing, providing strong guarantees for the stability and reliability of the product.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
