C&K JMU-100 Rotary X Y 3 Axis Motorized Stage
Download as 2D
Download as 3DProduct Parameter List
| Model | JMU-100 |
| Surface Size | 100×100mm |
| Travel Range | ±10/±10/±5° |
| Travel Guide | Crossed-Roller guide,Cross Roller ring |
| Resolution | 2/m(Full step) |
| Max.Speed | 10mm/sec(based on 5phase motor) |
| Applicable Ball Screw | O8,lead 1(C5/C7) |
| Accuracy | 7Lm(C5)/12/m(C7) |
| Bi-Repeatability | ±2/m(C5)/±3m(C7) |
| Load Capacity | 10 Kgf |
| Parallellsm | 40/m |
| Driving Parallelism | 20/μm |
| Staightness | 10/m |
| Weight | 3.5 Kg |
| Material | Aluminum |
| FInlsh Treatment | Black Anodizing |
Describe

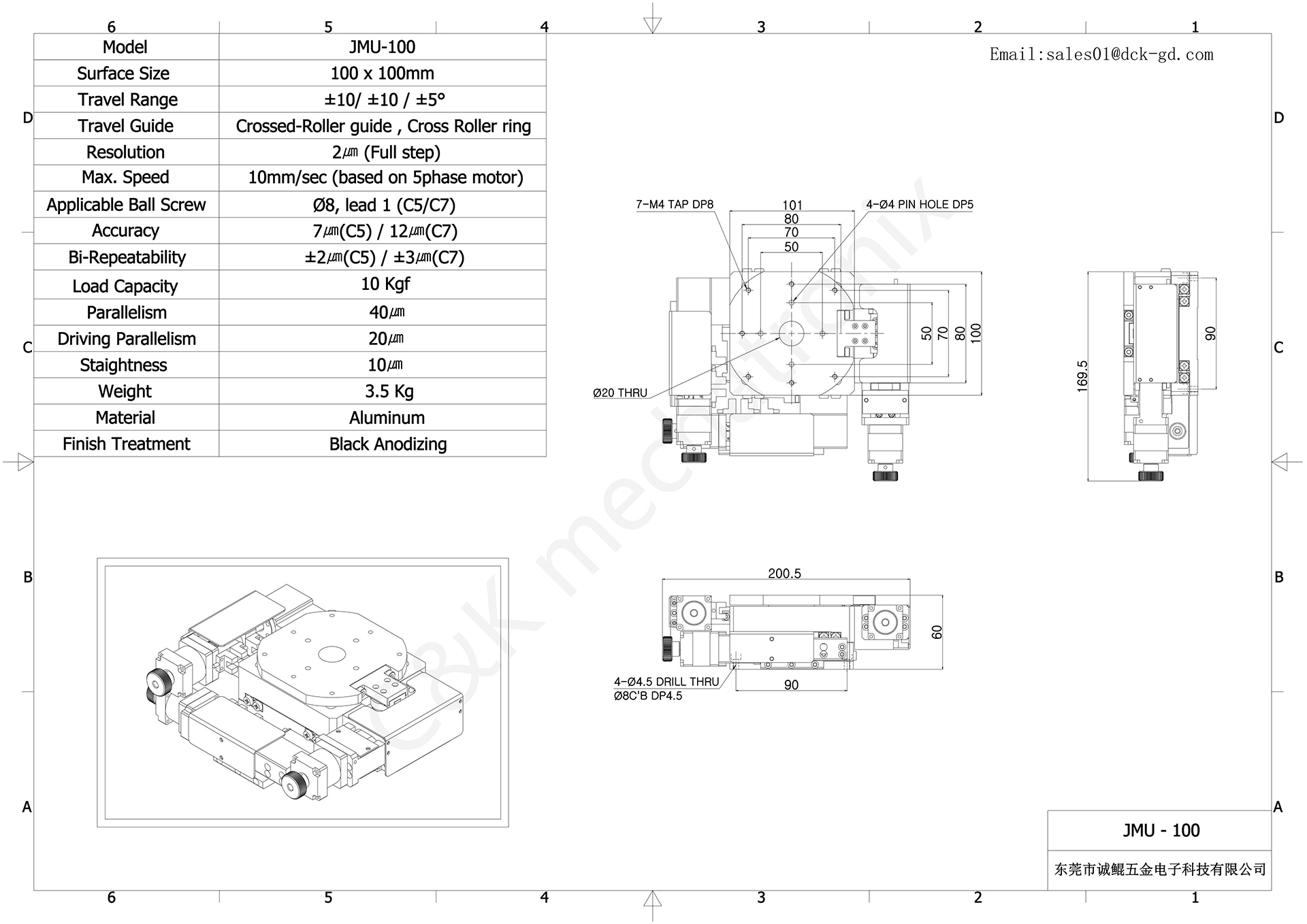

The electric slide table JMU-100 is a multi-degree-of-freedom precision displacement device that integrates XYZ three-axis linkage and rotational adjustment. It is specifically designed for compact working spaces and is perfectly suitable for high-precision application scenarios that require simultaneous XY plane displacement and angle fine-tuning.
The core performance advantages of this slide table are remarkable: it is equipped with a 100×100mm stable load-bearing surface, which can securely support a 10kg load. In a compact volume, it achieves a high load capacity, meeting the positioning adjustment requirements for medium-sized workpieces.
In the dimension of displacement adjustment, the linear moving stroke of the X and Y axes both reach 10mm, enabling precise alignment within the plane; at the same time, it is equipped with a rotary axis, supporting ±5° angle adjustment, easily completing the posture calibration of the workpiece.
The entire equipment adopts an electric drive mode, with precise coordination of each axis adjustment and smooth operation, capable of meeting the strict requirements of precision assembly in automated production lines, multi-dimensional sample positioning in laboratories, and posture adjustment of small detection equipment. It is an ideal choice for achieving multi-degree-of-freedom high-precision adjustment in small spaces.
