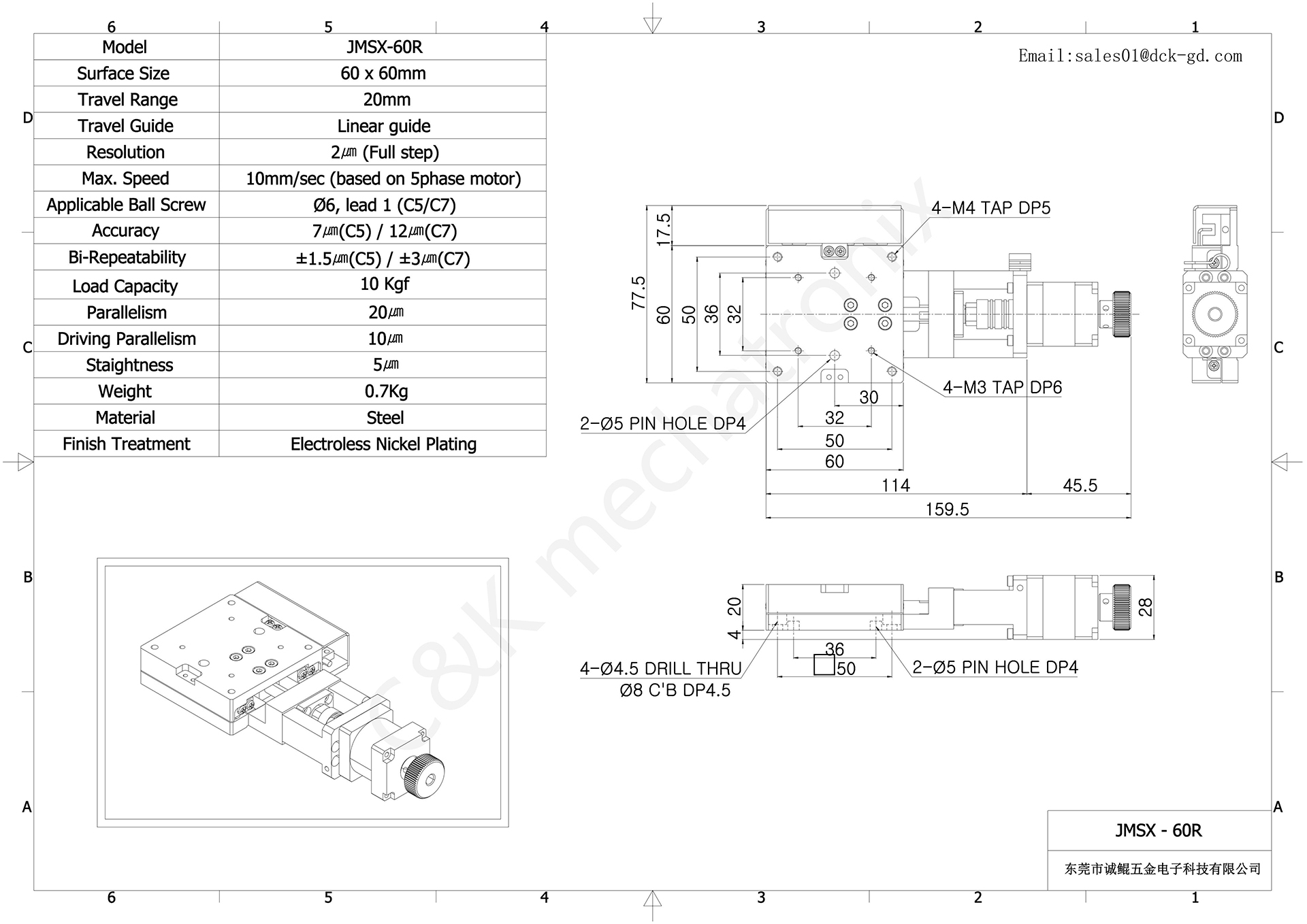

C&K JMSX-60 X Axis Steel Motorized Stage position adjusted
Download as 2D
Download as 3DProduct Parameter List
| Model | JMSX-60R |
| Surface Size | 60×60mm |
| Travel Range | 20mm |
| Travel Guide | Linear guide |
| Resolution | 2/m(Full step) |
| Max.Speed | 10mm/sec(based on 5phase motor) |
| Applicable Ball Screw | ②6,lead 1(C5/C7) |
| Accuracy | 7/Am(C5)/12/m(C7) |
| Bi-Repeatability | ±1.5/m(C5)/±3/m(C7) |
| Load Capacity | 10 Kgf |
| Parallelilsm | 20/m |
| Driving Parallelism | 10/μAM |
| Staightness | 5/M |
| Weight | 0.7Kg |
| Material | Steel |
| Inlsh Treatment | Electroless Nickel Plating |
Describe
The electric slide table JMSX-60 is a precision linear displacement device that integrates high load capacity, long service life, and lightweight design. It is specifically tailored for applications with strict requirements for bearing capacity, durability, and self-weight, and is widely applicable to automated production line material handling, precise instrument positioning, and small tool lifting and other operational needs.
The core performance parameters of this slide table are outstanding: equipped with a 60×60mm standard load-bearing surface, it can stably bear a load of 10kg, meeting the operational needs of medium and heavy-duty conditions; the linear travel is precisely set at 20mm, combined with a high-precision electric drive system, the adjustment process does not require manual intervention, the operation is convenient and fast, and it can achieve micron-level precise positioning, fully ensuring the displacement accuracy.
In terms of material and structural design, JMSX-60 has unique advantages. Its body is made of high-quality steel, featuring high rigidity and strong wear resistance, effectively extending the equipment's service life and enabling it to adapt to long-term and high-frequency operations; at the same time, through optimized structural design, it achieves lightweight while maintaining the strength characteristics of the steel material, perfectly meeting the dual usage standards of "high load requirements + low self-weight requirements".
The comprehensive polishing of performance and quality has made JMSX-60 a cost-effective choice that combines efficient operation and long-lasting durability.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
