C&K JMR-60 Rotary Axis Motorized Stage position adjusted
Download as 2D

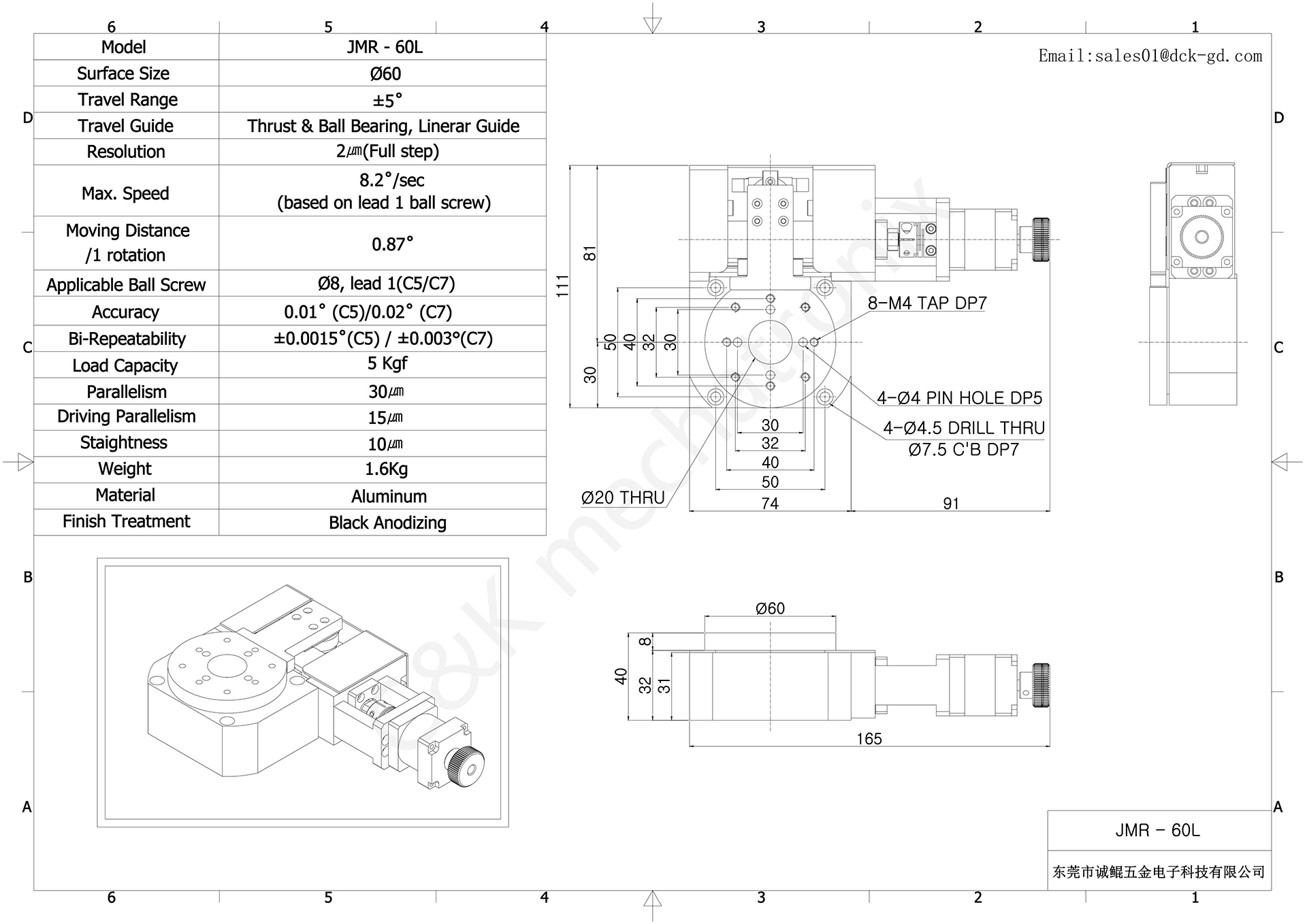

Download as 3DProduct Parameter List
|
Model |
JMR-60L |
|
Surface Size |
060 |
|
Travel Range |
±5° |
|
Travel Guide |
Thrust &Ball Bearing,Linerar Guide |
|
Resolution |
2/m(Full step) |
|
Max.Speed |
8.2°/sec |
|
Moving Distance /1 rotation |
0.87° |
|
Applicable Ball Screw |
O8,lead 1(C5/C7) |
|
Accuracy |
0.01°(C5)/0.02°(C7) |
|
Bi-Repeatability |
±0.0015°(C5)/±0.003°(C7) |
|
Load Capacity |
5 Kgf |
|
Parallelism |
30μm |
|
Driving Parallelism |
15μm |
|
Staightness |
10/μ4m |
|
Weight |
1.6Kg |
|
Material |
Aluminum |
|
Finish Treatment |
Black Anodizing |
Describe
The electric slide table JMR-60 is a high-performance device that focuses on precise angle adjustment. It is specially designed for horizontal angle positioning requirements and is widely applicable in scenarios such as precision inspection, small equipment attitude calibration, and automated production line fixture adjustment.
The core parameters of this slide table are impressive: it is equipped with a standard 60×60mm load-bearing surface, which can stably bear loads within 5kg; it comes with a standard **±5° angle adjustment range**, and is paired with an electric drive system. The adjustment process does not require manual operation, which is not only convenient and efficient but also enables high-precision angle positioning, fully meeting the angle adjustment requirements in routine conditions.
For special scenarios with greater angle adjustment needs, we offer personalized customization services. Customers can contact us at any time, provide specific angle parameters and application conditions, and we will arrange a professional team to conduct a technical assessment and tailor a customized solution that meets the requirements, fully meeting the diverse operational needs of different customers.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
