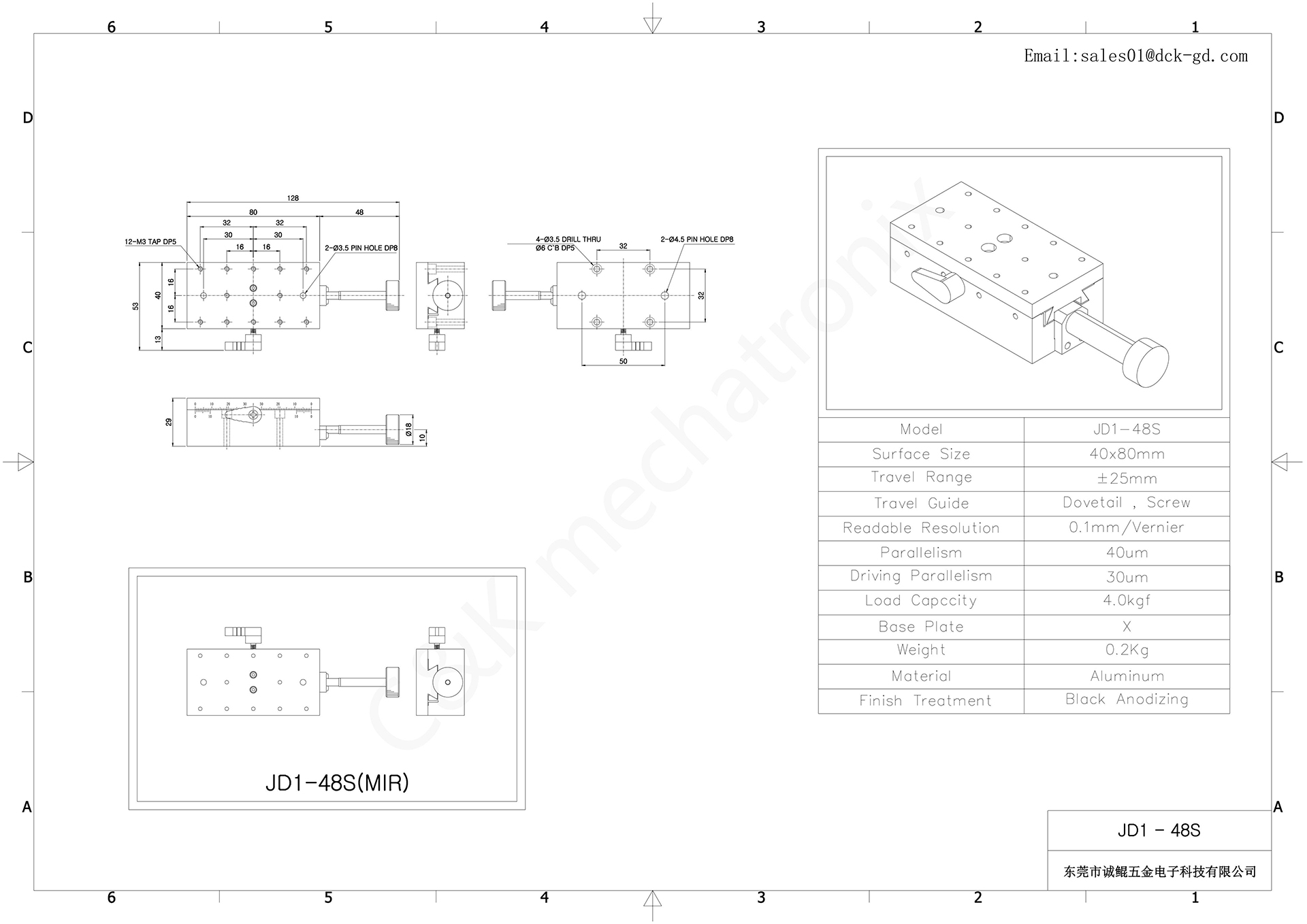

C&K JD1-48S X Axis Manual Stage
Download as 2D
Download as 3DProduct Parameter List
| Model | JD1-48S |
| Surface Size | 40x80mm |
| Travel Range | ±25mm |
| Travel Guide | Dovetail，Screw |
| Readable Resolution | 0.1mm/Vernier |
| Parallelism | 40um |
| Driving Parallelism | 30um |
| Load Copccity | 4.0kgf |
| Base Plate | X |
| Weight | 0.2Kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The manual slide table JD1-48S is a precision adjusting slide table that adopts a dovetail groove guide rail structure combined with screw drive. The adjustment operation is smooth and effortless, enabling stable and smooth linear displacement control.
This slide table has distinct core advantages. Not only does it have the ability for long stroke adjustment, which can meet the operation requirements of large displacement ranges, but it also features a lightweight design with a light self-weight, effectively reducing the overall load of the equipment. It is particularly suitable for application scenarios where there are strict requirements for stroke length and the self-weight of the slide table.
The tabletop size of this slide table is 40×80mm. It is equipped with a high-precision adjusting screw, and the displacement resolution can reach 0.1mm. It balances the adjustment accuracy and operational convenience.
In addition, JD1-48S adheres to a high-performance and cost-effective positioning principle. On the basis of ensuring stable performance and durable quality, it saves procurement costs for customers with an affordable price. It is a cost-effective choice for industrial automation support, experimental device setup, and small equipment adjustment scenarios.
