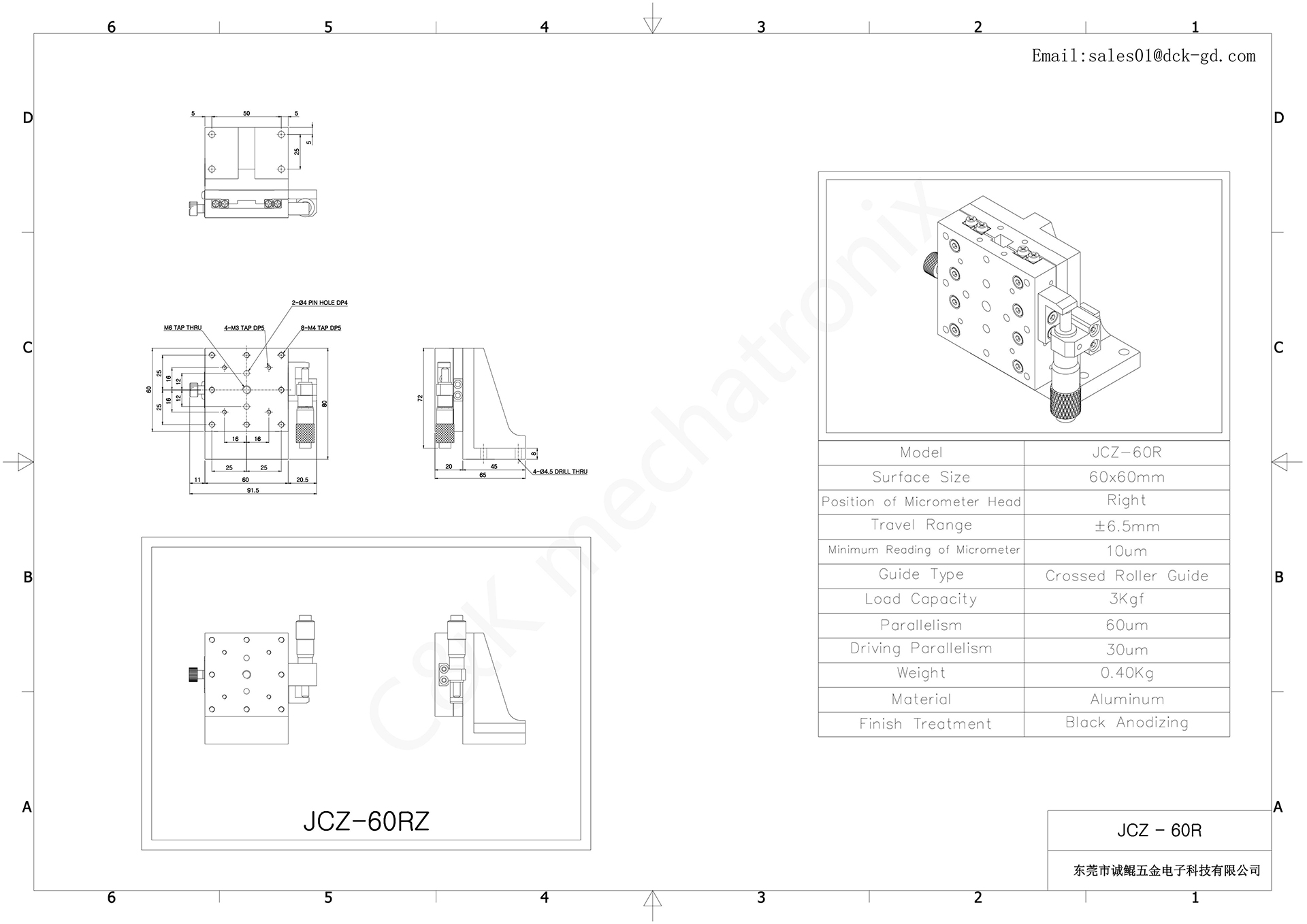

C&K JCZ-60 Z Axis Manual Stage vertical position adjuster
Download as 2D
Download as 3DProduct Parameter List
| Model | JCZ-60R |
| Surface Size | 60×60mm |
| Position of Micrometer Head | Right |
| Travel Range | ±6.5mm |
| Minimum Reading of Micrometer | 10um |
| Guide Type | Crossed Roller Guide |
| Load Capacity | 3Kgf |
| Parallelism | 60um |
| Driving Parallelism | 30um |
| Weight | 0.40Kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The manual slide table JCZ-60 series is a precision adjustment device specifically designed for vertical displacement scenarios. It focuses on the precise vertical movement requirements in the Z-axis direction, and is widely applicable to various fields such as industrial inspection, laboratory research, and micro-device assembly.
The Z-axis travel range of this slide table can reach ±6.5mm. The travel range is suitable for the majority of Z-axis adjustment conditions in industrial production and experimental testing, and can be put into use quickly without additional modification. The body design has standardized holes of multiple specifications, which can meet the installation and connection requirements of different types of equipment, significantly improving the flexibility and adaptability of assembly.
In terms of quality and performance, the JCZ-60 series demonstrates its advantages: It is made of high-quality aluminum components, featuring lightweight and high rigidity, corrosion resistance, wear resistance, and durability. At the same time, it is equipped with a precise adjustment structure, which can achieve high-precision displacement control and meet the requirements of operations with strict positioning accuracy.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
