C&K JCXY-100-25 X Y Axis Manual Stage Optical parts in Stock

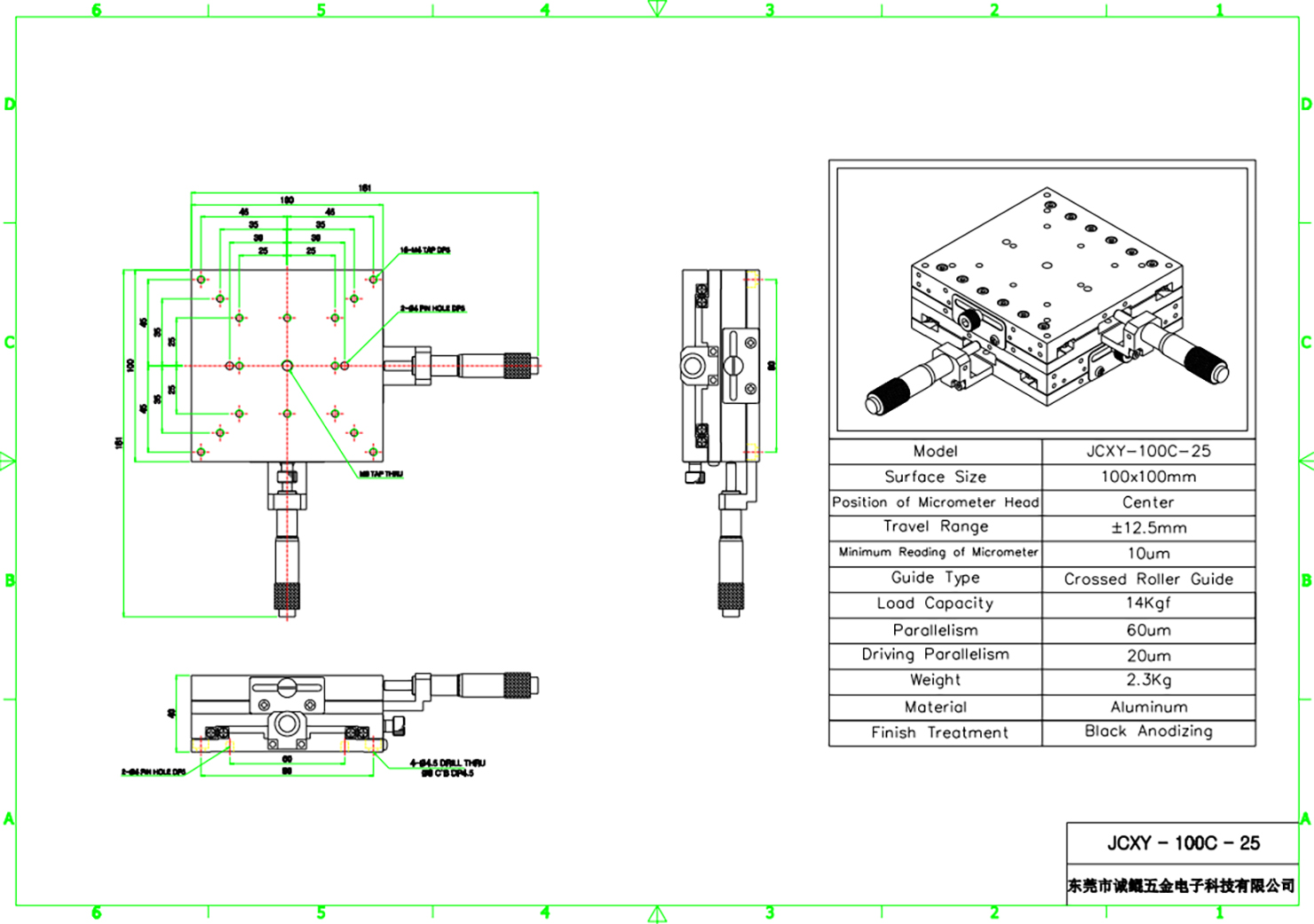

Download as 2D
Download as 3DProduct Parameter List
| Model NO. | JCXY-100-25 |
| Surface Size | 100*100mm |
| Position of Micrometer Head | Left/ Right/ Center |
| Minimum Reading of Micrometer | 10μm |
| Guide Type | Crossed-Roller Guide |
| Load capacity | 14kgf |
| Parallelism | 60μm |
| Driving Parallelism | 20μm |
| Weight | 2.4kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The C&K JCXY-100-25 series of manual stage devices are high-precision positioning systems designed specifically for optical instrument applications. The frame is made of high-quality, highly rigid aluminum alloy, combining light weight with excellent rigidity. It is corrosion-resistant and has good heat dissipation properties. Its accuracy remains stable over long-term use without degradation. This product is ideal for applications requiring high precision, such as microscopic observation, precise alignment, and optical testing. The tabletop dimensions are 100mm × 100mm, and the entire device weighs only 2.4kg, making it easy to transport and integrate into systems. Its lightweight design allows it to handle a load of up to 14kgf, balancing portability and functionality.
Equipped with high-precision cross-roller guides, the stage operates smoothly without any lag or sticking. With a minimum resolution of 10μm, it enables precise micro-adjustments at the micron level, meeting the demanding requirements of optical applications for high-precision positioning. The product can be customized through OEM/ODM services, and custom laser engraving is also available to meet specific needs. It meets ISO standards and complies with European and German EPR regulations regarding environmentally friendly packaging.
Thus, it offers both superior quality and environmental friendliness, giving it a strong competitive edge in overseas markets and facilitating smooth customs clearance. Manufactured by a domestic manufacturer specializing in precision components, this product benefits from advanced manufacturing processes and strict quality control. Its excellent quality makes it ideal for export to high-end markets in Korea and Japan. With its reliable performance, it has earned the trust of customers worldwide over the years.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
