C&K JCRF-80 rotary Axis Manual Stage high load capacity

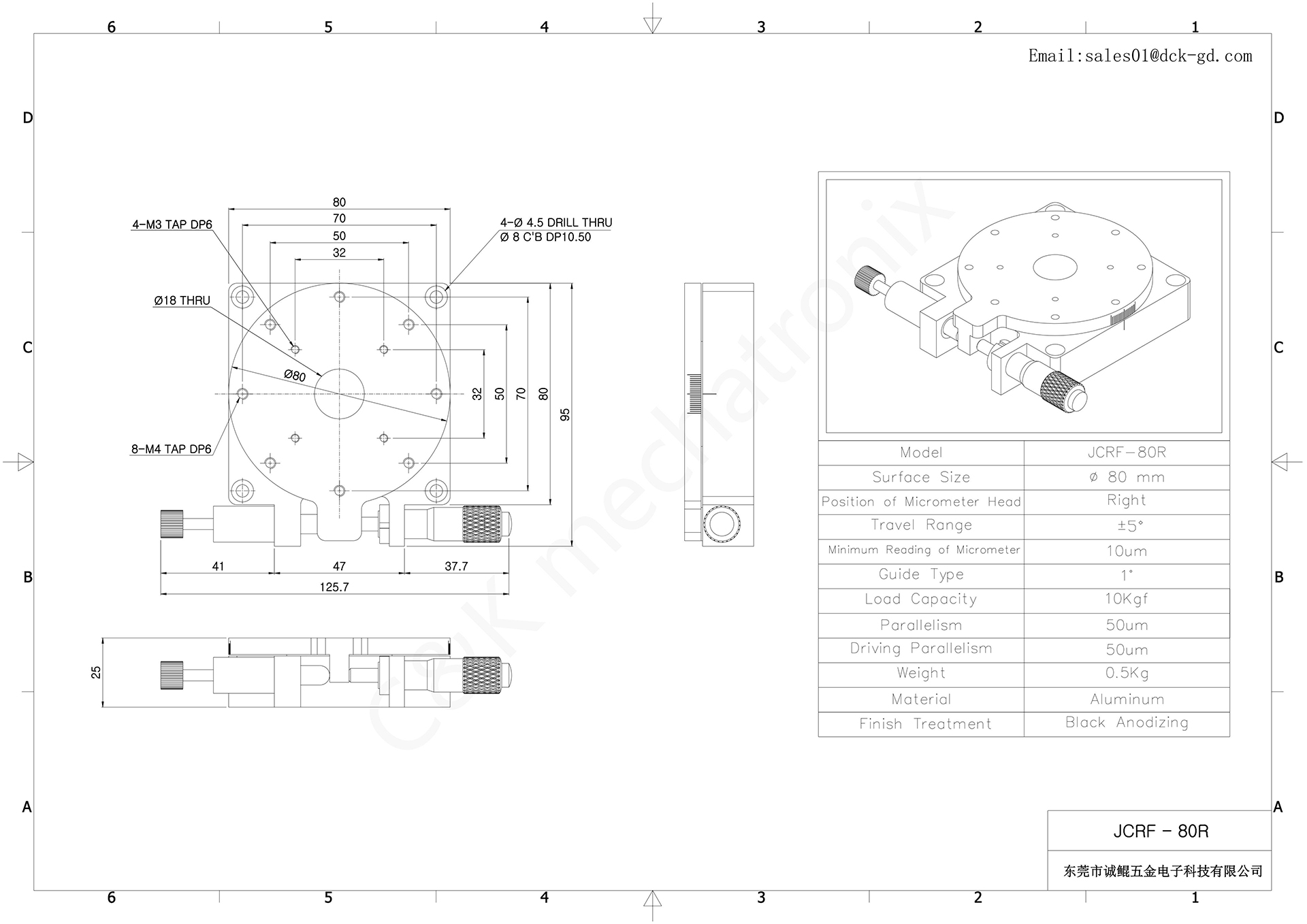

Download as 2D
Download as 3DProduct Parameter List
| Model | JCRF-80R |
| Surface Size | 80 mm |
| Position of Micrometer Head | Right |
| Trovel Range | ±5° |
| Minimum Reoding of Micrometer | 10um |
| Guide Type | 1' |
| Lood Copacity | 10Kgf |
| Parallelism | 50um |
| Driving Parallelism | 50um |
| Weight | 0.5Kg |
| Material | Aluminum |
| Finish Treatment | Black Anodizing |
Describe
The movable slide JCRF-80 is a precision transmission device specifically designed for high-load operation scenarios. Compared to conventional rotating slides, it has improved load-bearing performance and can easily meet the positioning and adjustment requirements in various heavy-duty working conditions.
In terms of precision control, this slide performs exceptionally well, offering both a wide range of adjustment and fine-tuning advantages: it supports 360° non-stop coarse adjustment, enabling quick completion of large-angle position calibration; combined with ±5° precise fine-tuning function, it can achieve micron-level positioning control, fully meeting the strict requirements of high-precision processing, inspection, and experiments.
What's more noteworthy is that JCRF-80 adheres to the principle of high cost-effectiveness, ensuring excellent quality while reducing procurement costs for customers with affordable prices. The components of the product are all made from high-quality raw materials, with a sturdy and durable structure, stable and reliable operation, effectively extending the equipment's service life and reducing the frequency of subsequent maintenance.
1.Are you the direct manufacturer or a trade company?
A: We are a manufacturer. All of our products are manufacturing in Dongguan City, Guangdong Province, in China. Welcome to visit us!
2. What’s your advantage?
A : We are China and South Korea joint venture. We cooperate technology and share information with MENTOR T&C company from South Korea since 2018.
3.Can you give warranty of your products?
A:All products are inspected for quality before shipment. We provide 1-year warranty for each product. The shipment report will be attached to the product shipment.
4.What’s your after-sell service?
A: Since 2019, we promise to our customers the “24H on-site to solve problems(China Only)” and “48H reply solution” service(For foreign country). Please feel free to contact with us.
5.How about the delivery time?
A: Most of the products are in stock, small orders and samples can be shipped within 3-8 working-days. For large orders, please confirm the delivery date with the customers service.
6.What’s the MOQ? May I get samples, first?
A: For “ready to ship”, sample is available. So the MOQ is 1 piece /1 set. For customization, we need to discuss more details. The final quotation is according to receiving full description of the products you want, size, material, quantity and so on.
7.Can I add my own logo?
A: Sure. Just provide an AI file or picture of your company logo, then we can make a laser logo for you.
